BORING MACHINE

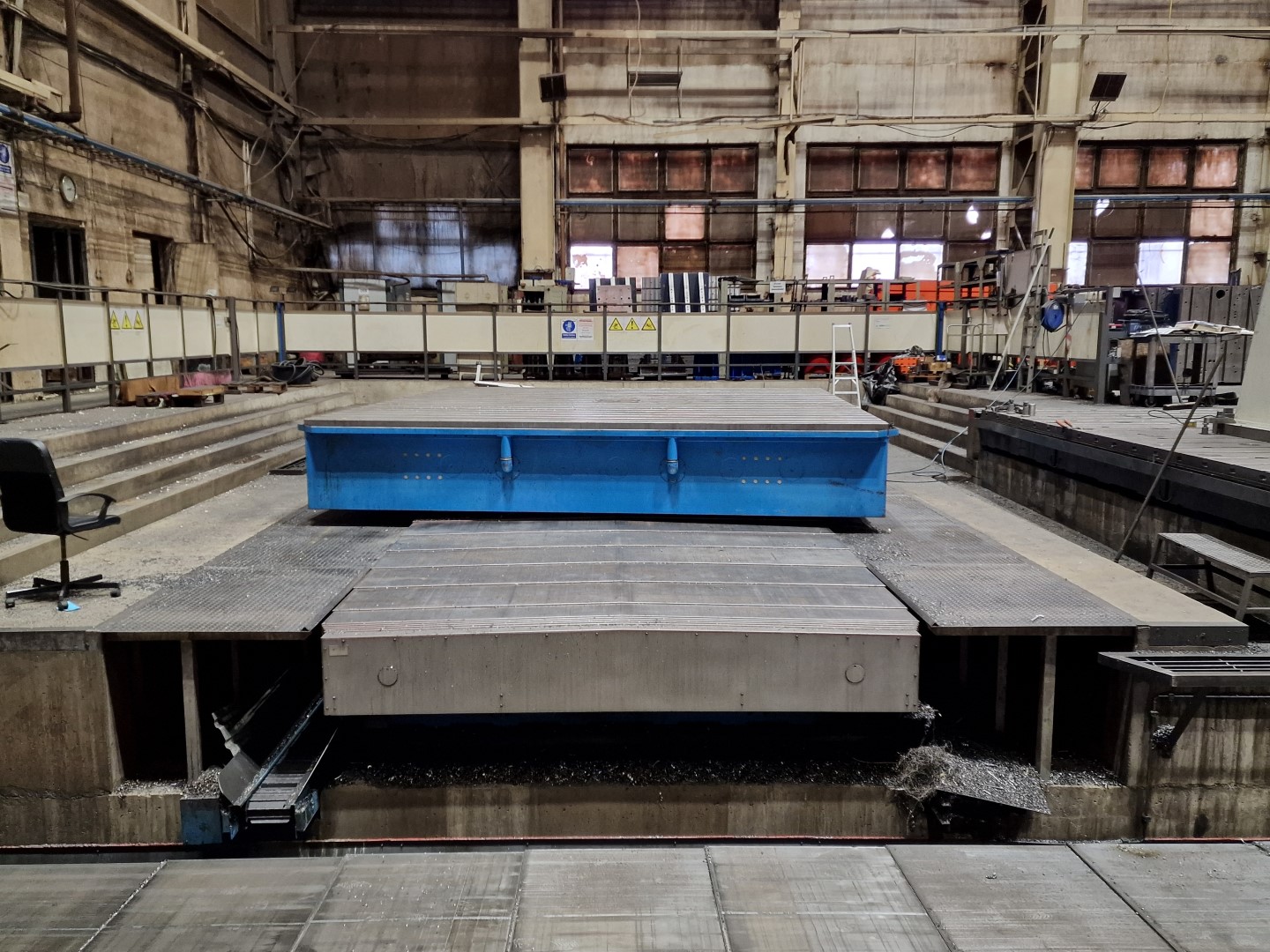

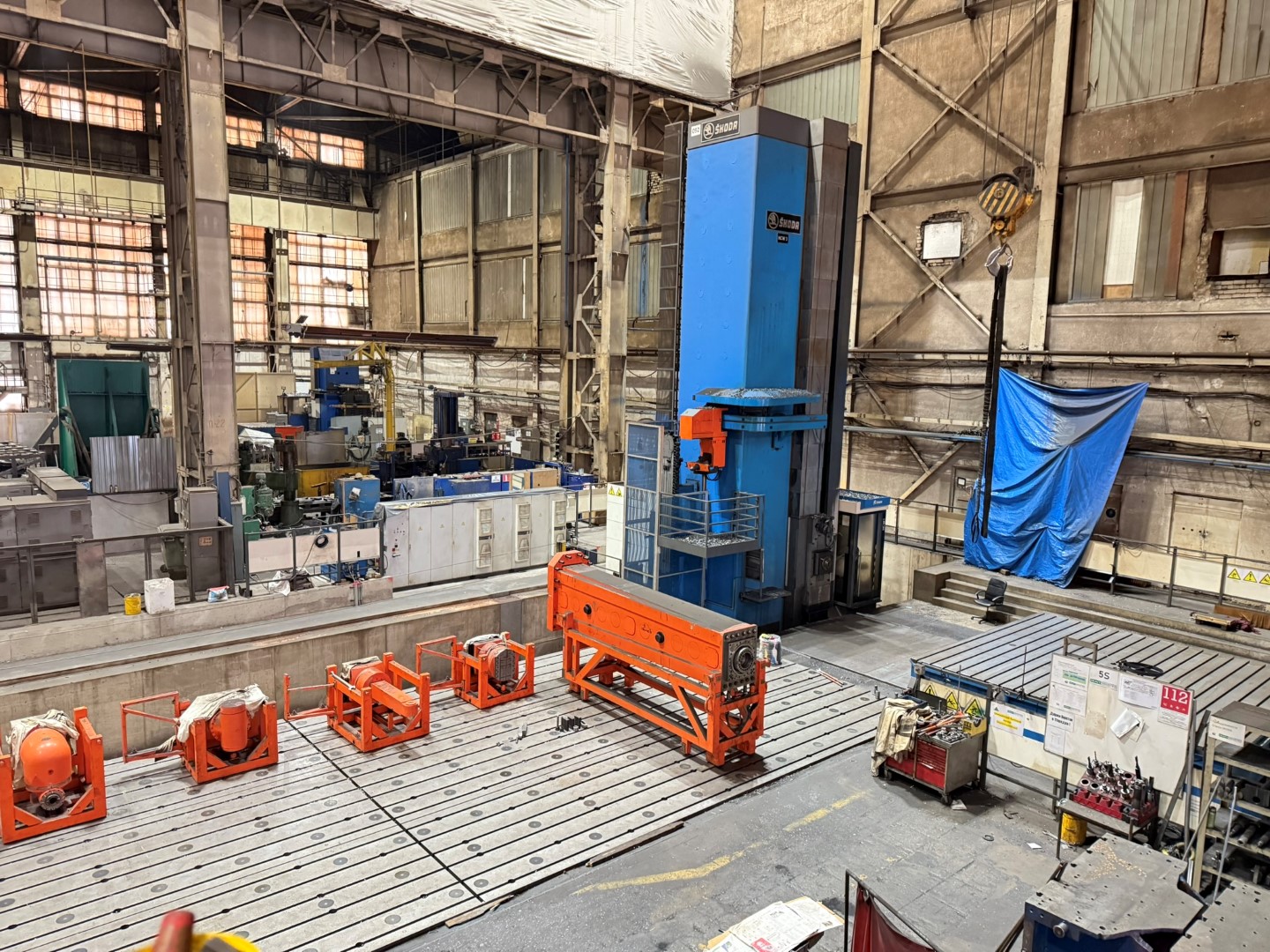

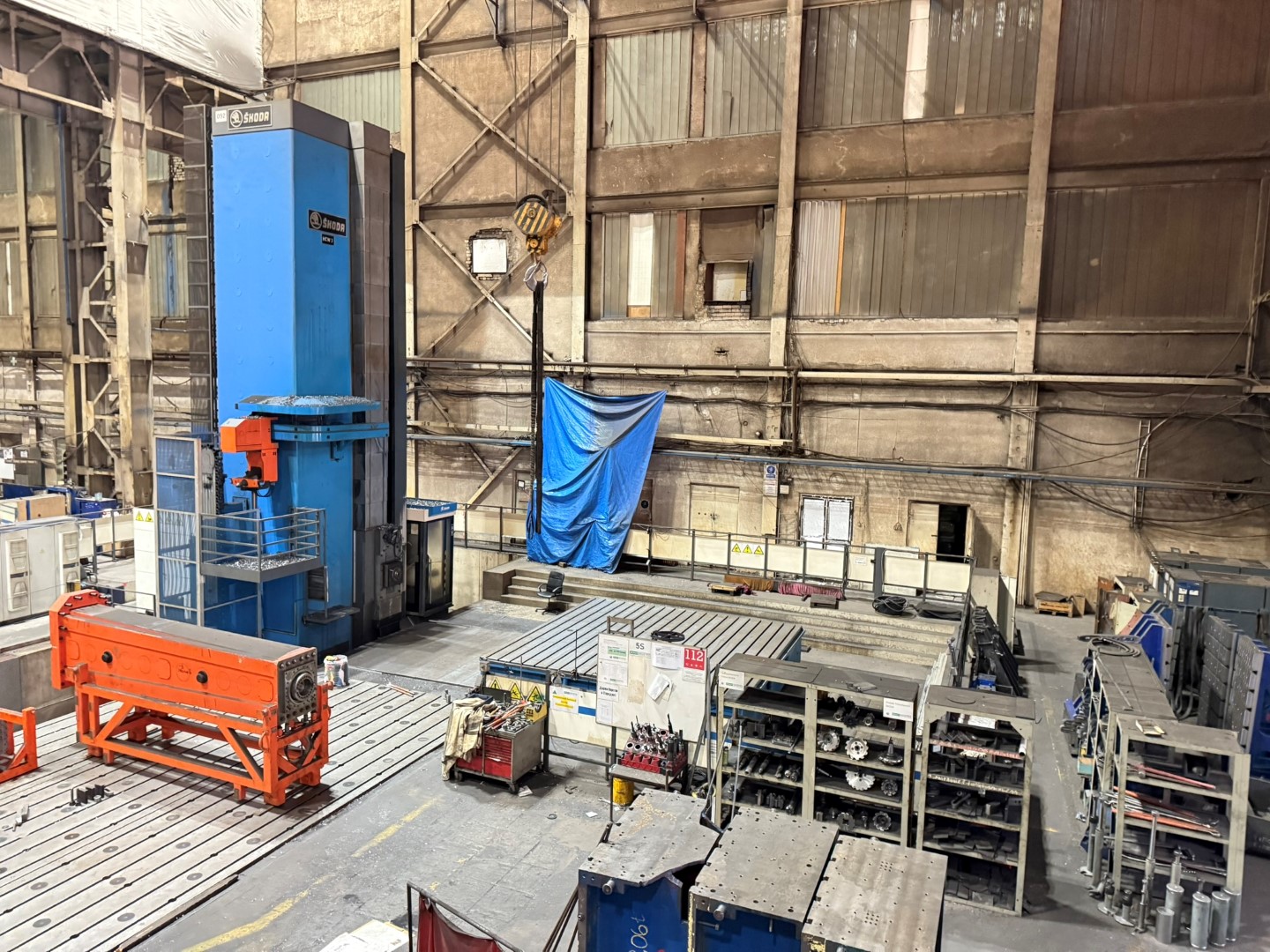

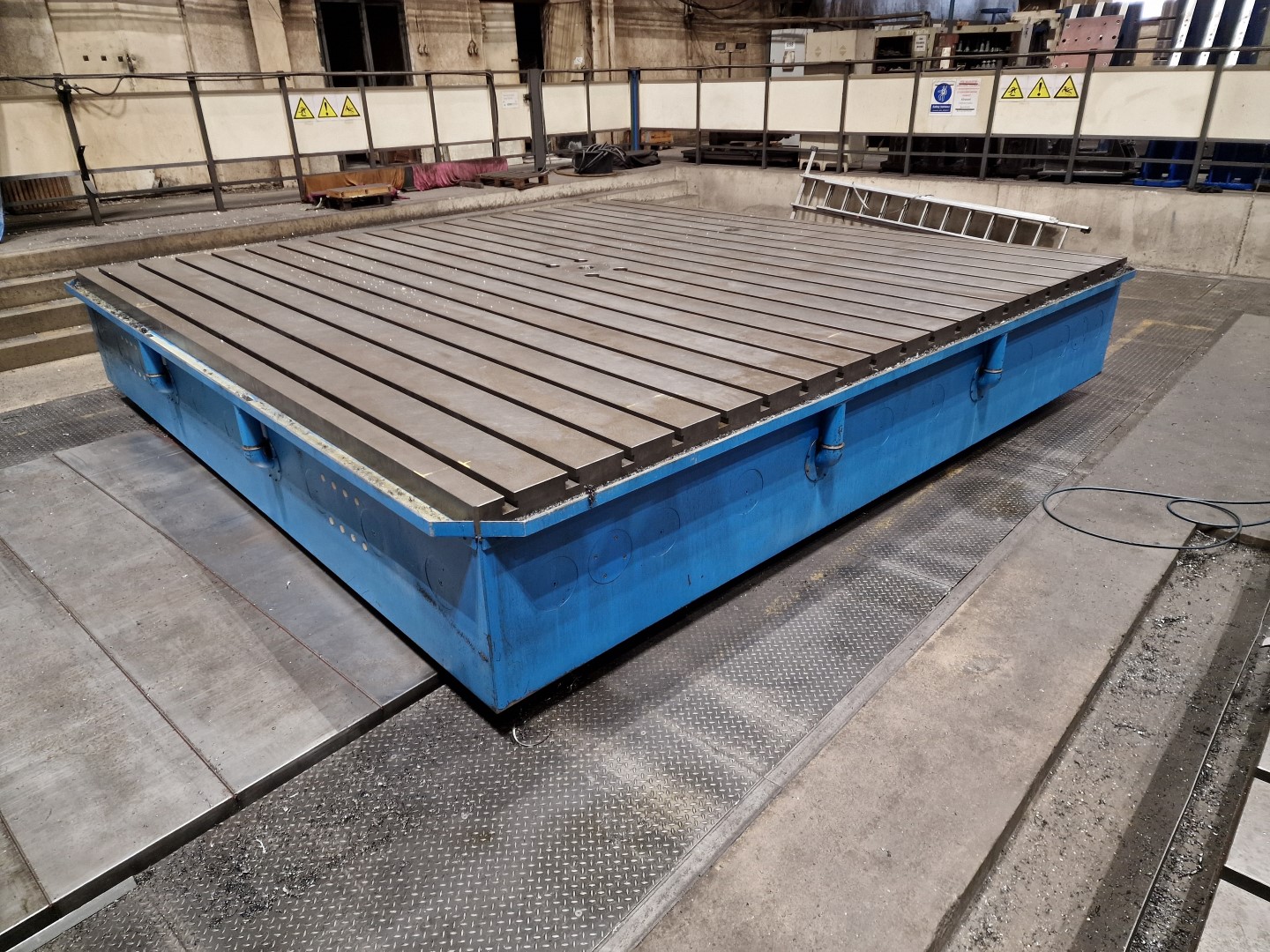

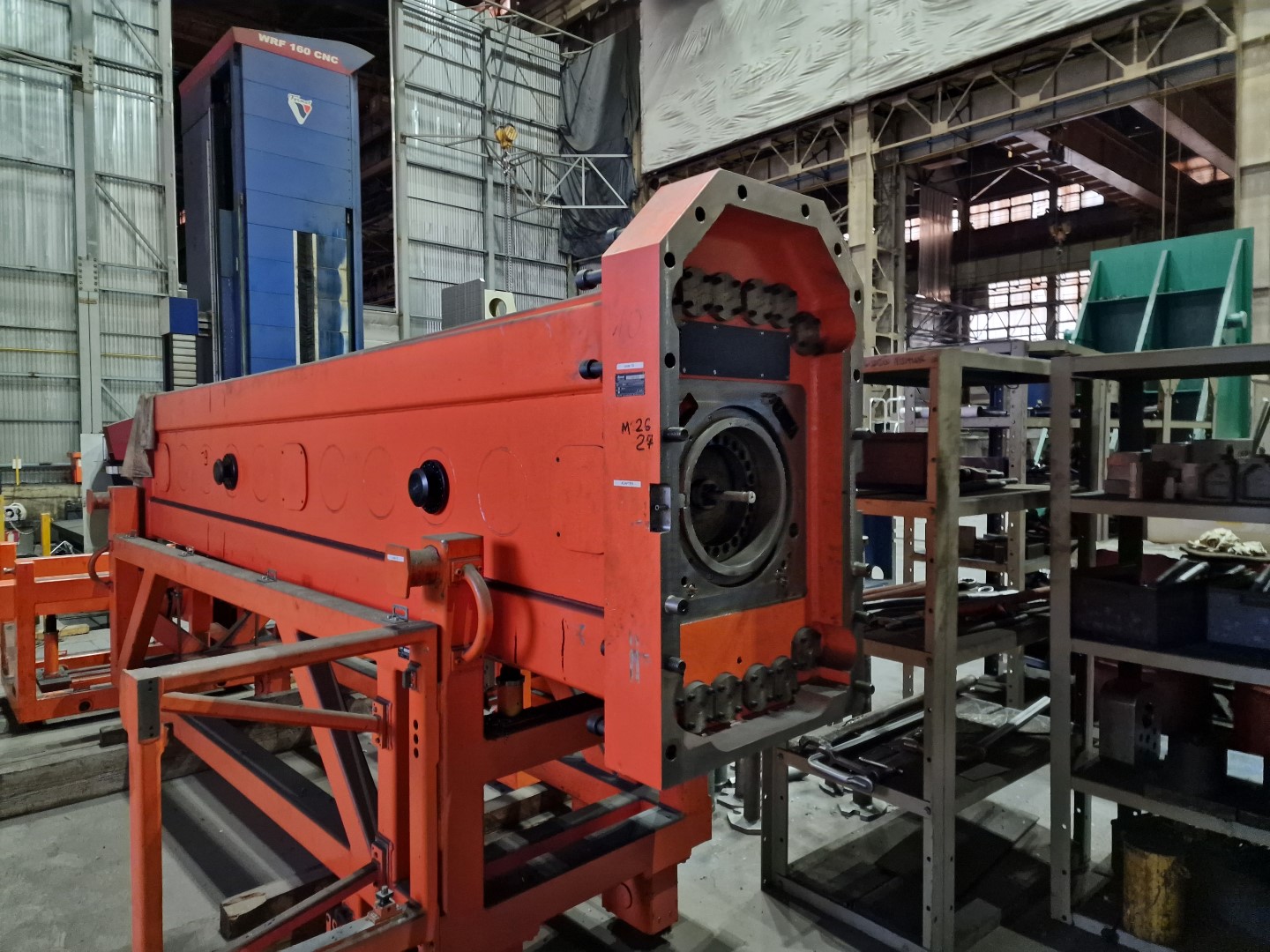

Skoda HCW 3 Year: 2015, X=23 m, Y=8 m
- X-axis 23000 mm
- Y-axis 8000 mm
- Z-axis (Ram) 1600 mm
- W-axis (Spindle) 1500 mm
- Z+W axis 3100 mm
- Spindle dia 200 mm
- Centering dia on milling spindle 335 mm
- Taper ISO 50 BIG PLUS
- Ram size 520 x 520 mm
- Spindle speed 2000 rpm (3-step gearbox)
- Spindle power 100 KW
- Spindle torque 14000 NM

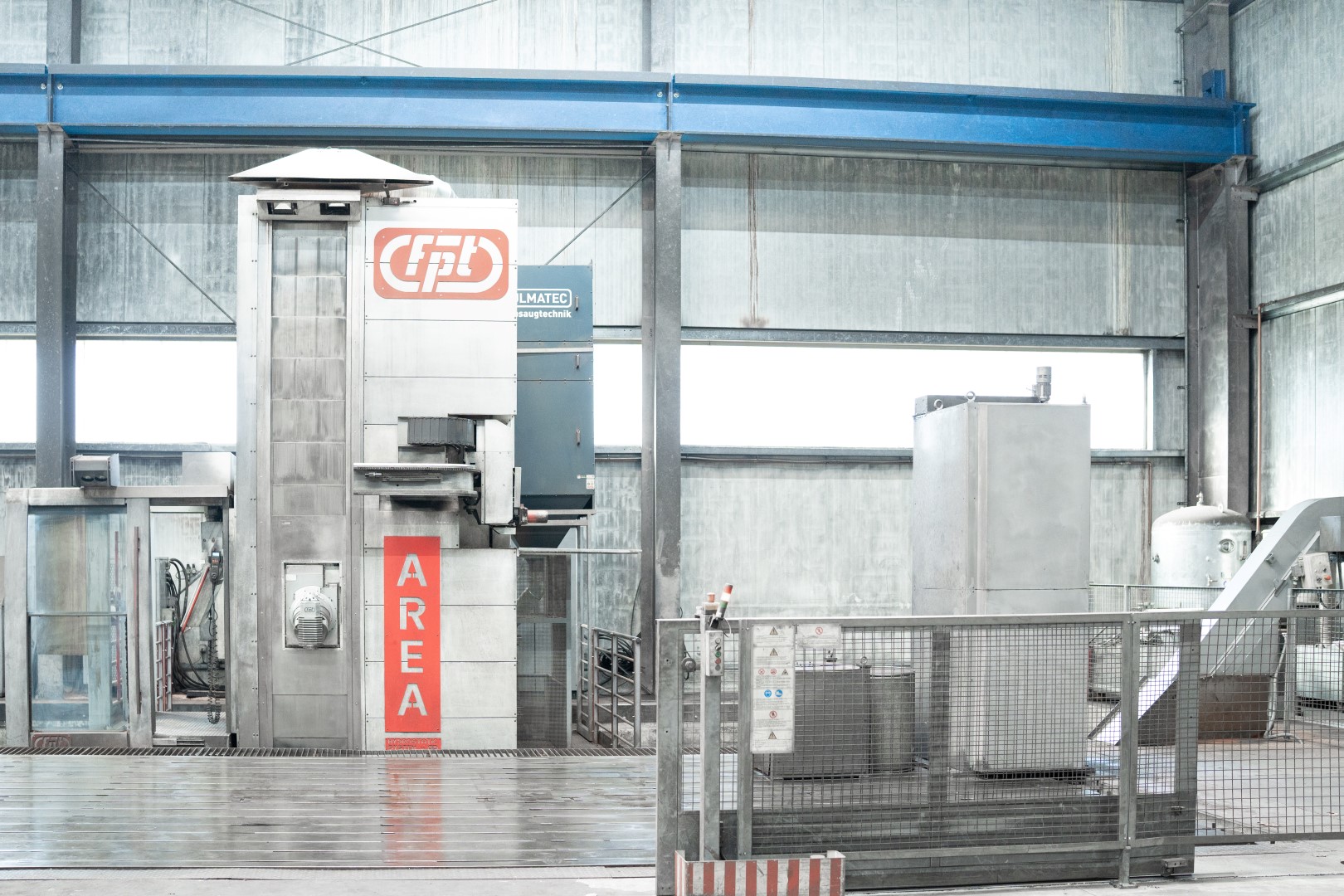

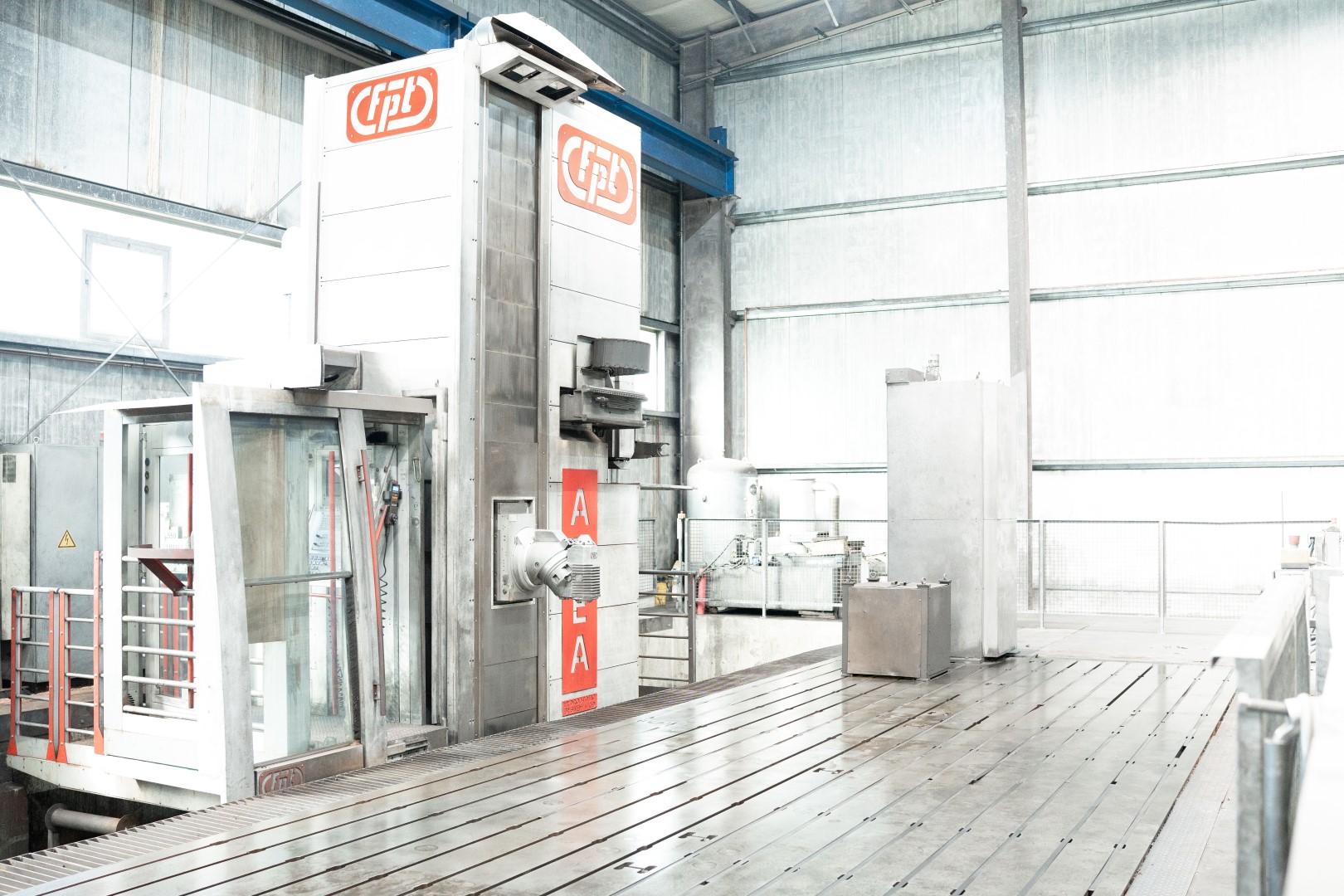

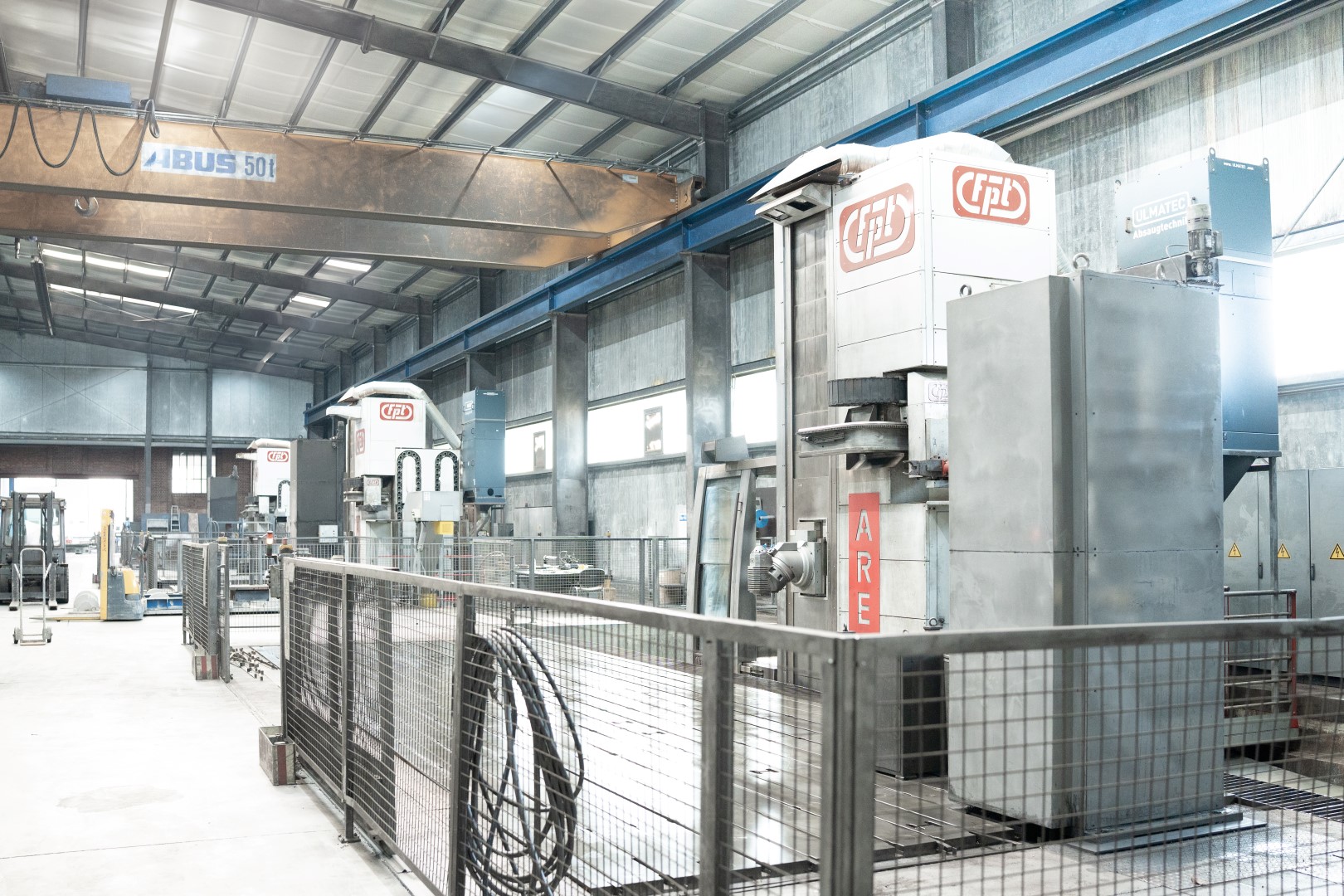

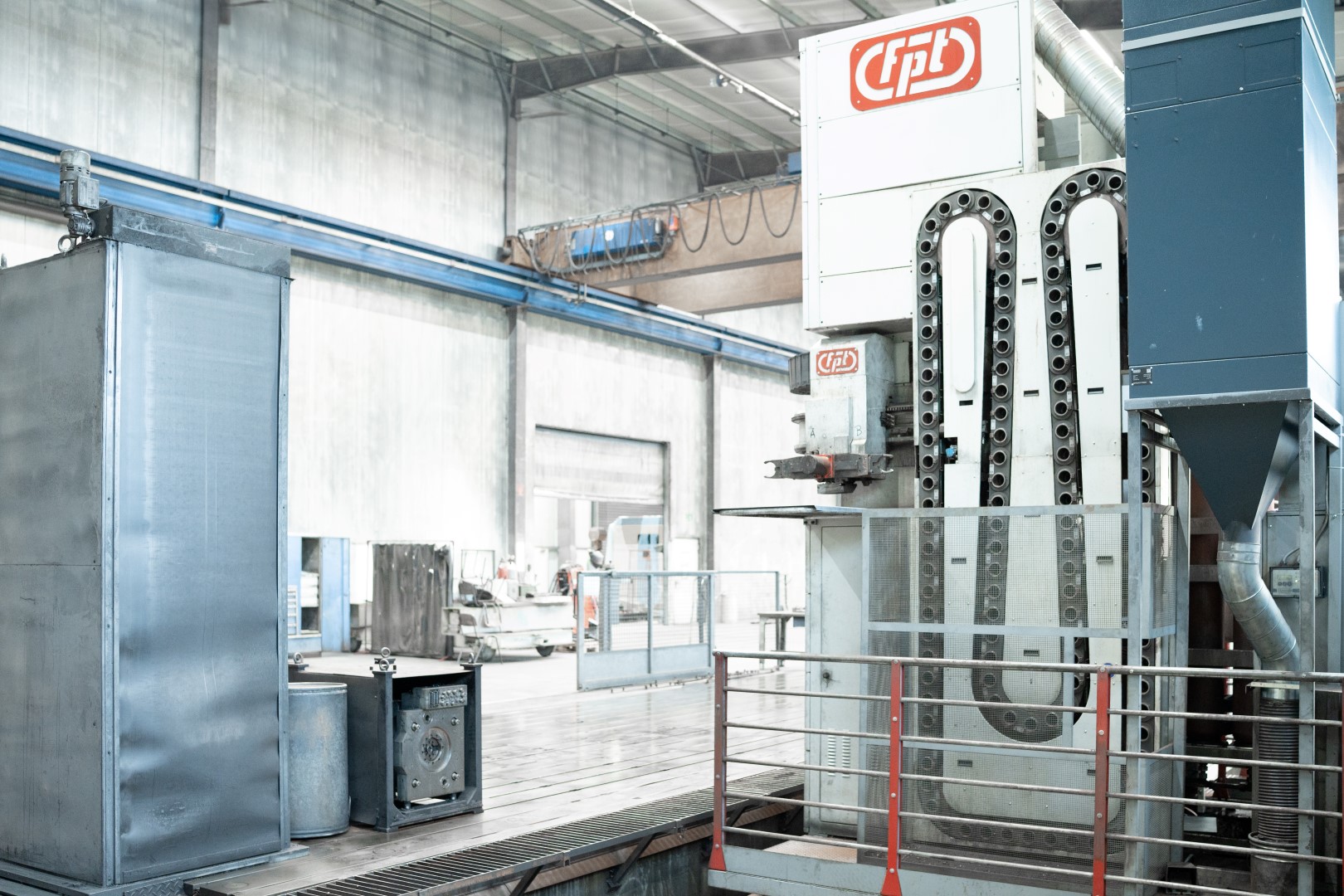

FPT AREA 2009 X=12000 mm, Y = 3500 mm CNC Milling and Boring Machine
- Chuck dia - 5420 mm
- Max. turning dia - 6540 mm
- Max. turning height - 3500 mm
- Ram travel vertical - 1680 mm
- Ram travel horizontal - 3250 mm
- Workpiece weight - 80 Tonnes
- Machine weight - aprox 190 Tonnes

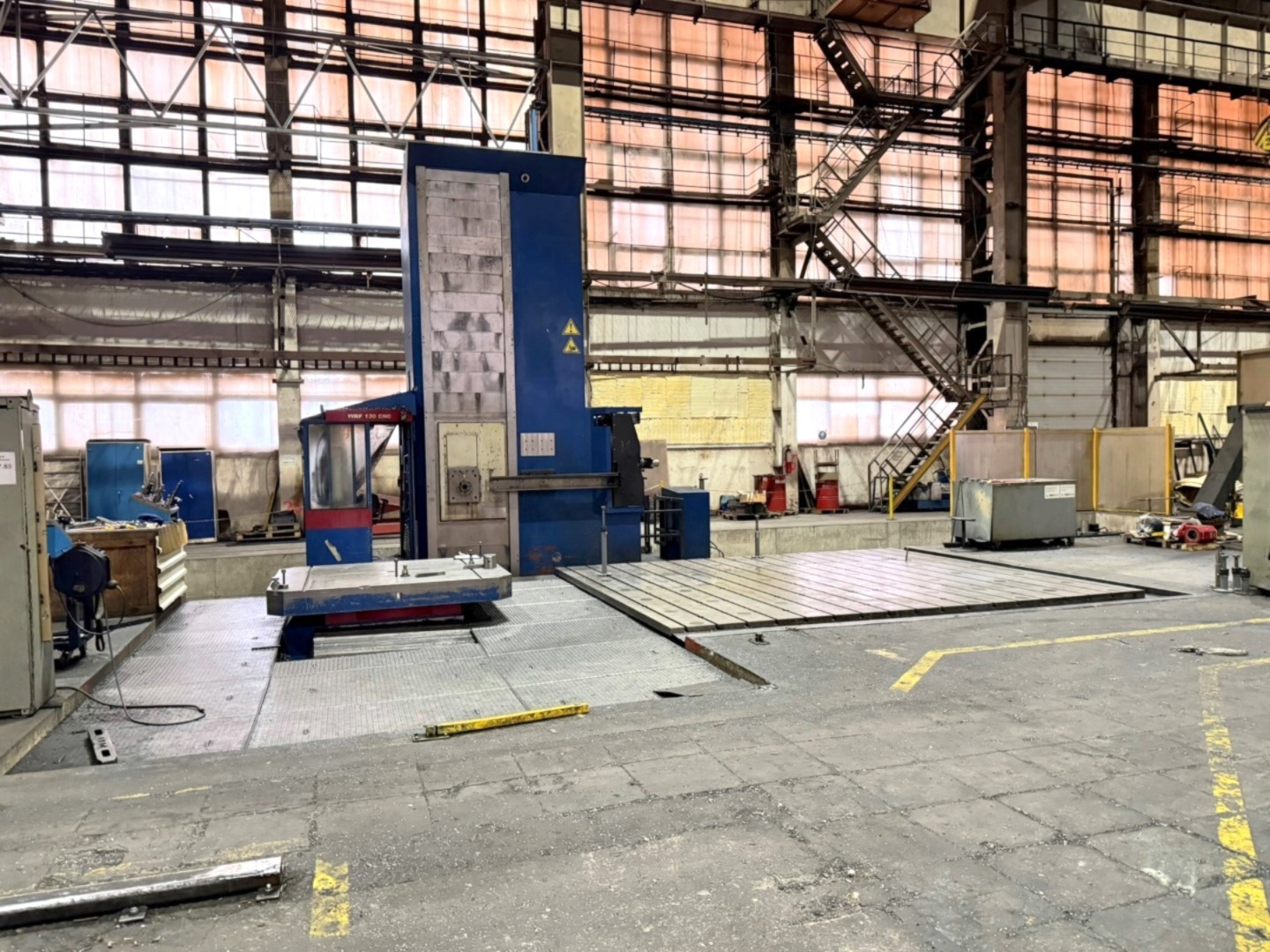

Fermat WRF 160 - 2011 - X=16m, Y=6m
- x-travel - 16000 mm
- y-travel - 6000 mm
- z-travel - 1000 mm
- w-travel - 1000 mm
- Spindle dia - 160 mm
- Spindle power - 51 KW
- Spindle Torque - 2655 NM
- Spindle Speed - 10-2500 rpm
- Ram size - 460 x 480 mm
- Cutting Feeds - 8 m/min
- Rapid Feed - X/Y/Z 15 m/min
- Rapid Feed - W&V 10 m/min
- CNC Rotary Table - 3500 x 3000 mm
- Table load Cap - 50 Tonnes
- V-travel - 1500 mm
- Through coolant - 20 Bar

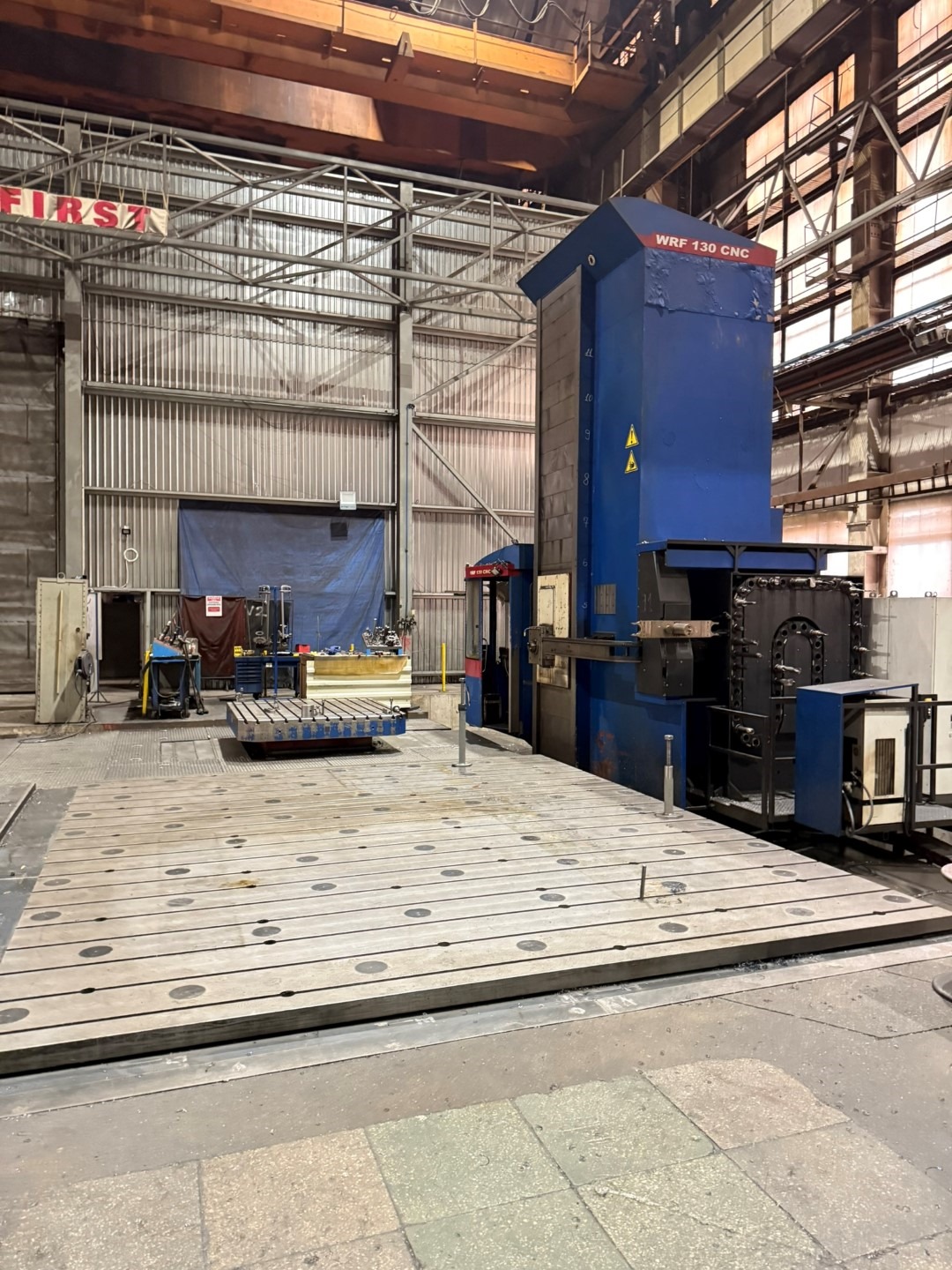

Fermat WRF 130 CNC - 2012 X=13.5m, Y=4m
- x-travel 13500 mm
- y-travel 4000 mm
- z-travel 900 mm
- w-travel 730 mm
- Spindle dia 130 mm
- Spindle power 37 KW
- Spindle Torque 2000 NM
- Spindle Speed 10-3000 rpm
- Ram size 430 x 430 mm
- ATC 60 places
- Cutting Feeds 8 m/min
- Rapid Feed X/Y/Z 15 m/min
- Rapid Feed W&V 10 m/min
- CNC Rotary Table 2000 x 2400 mm
- Table load Cap 20 Tonnes
- V-travel 2400 mm
- Through coolant 20 Bar
