CNC VERTICAL LATHE

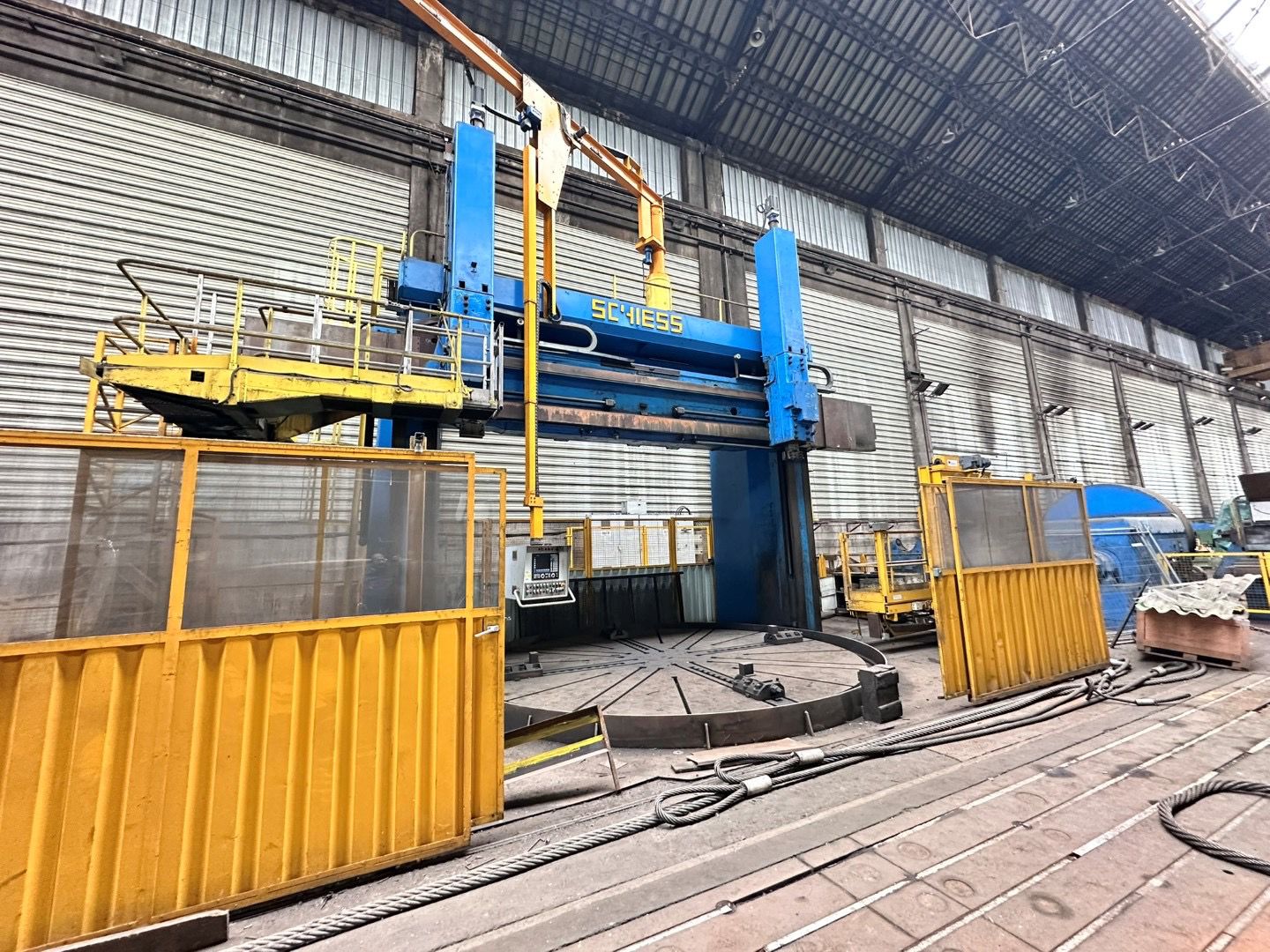

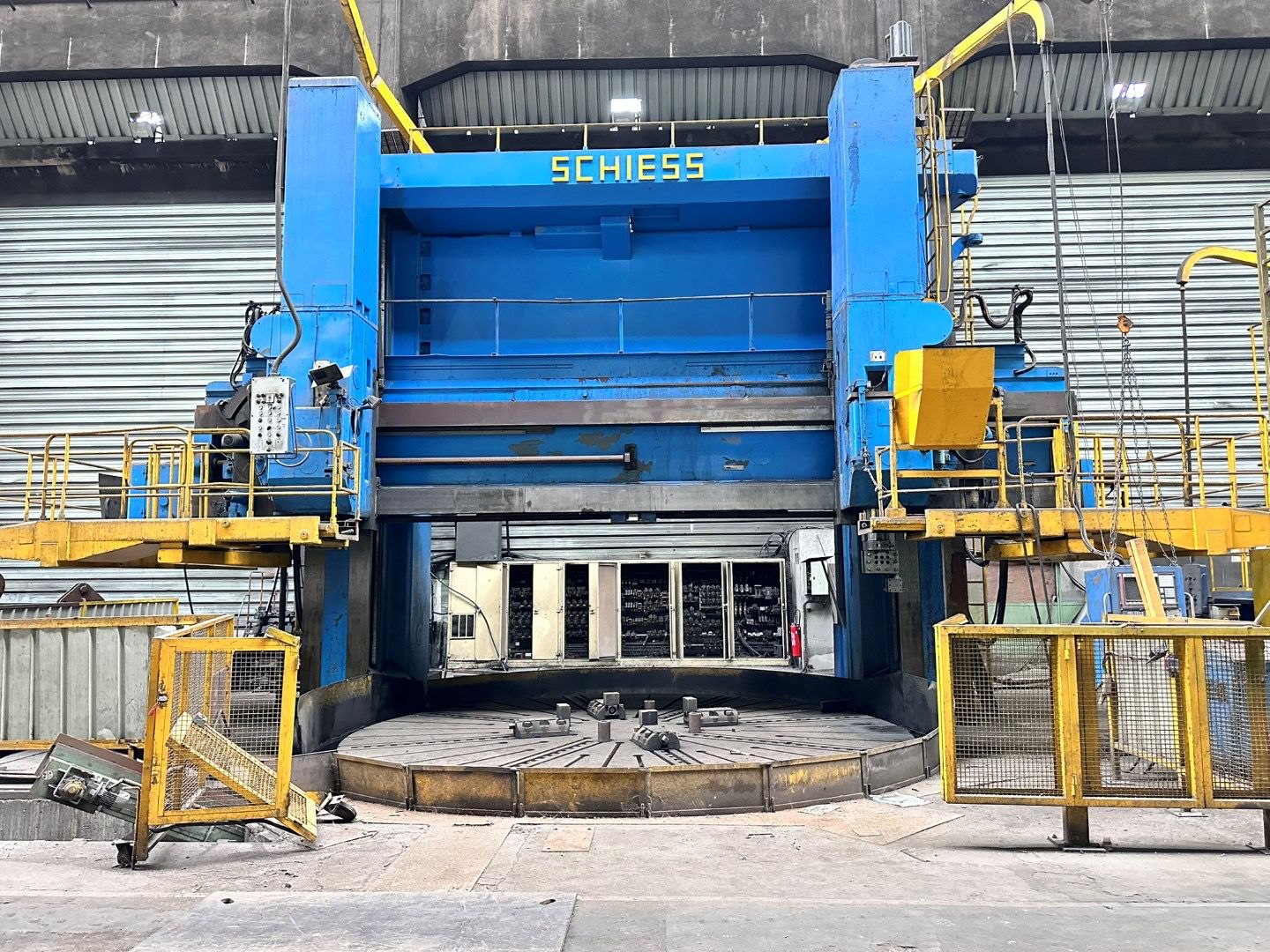

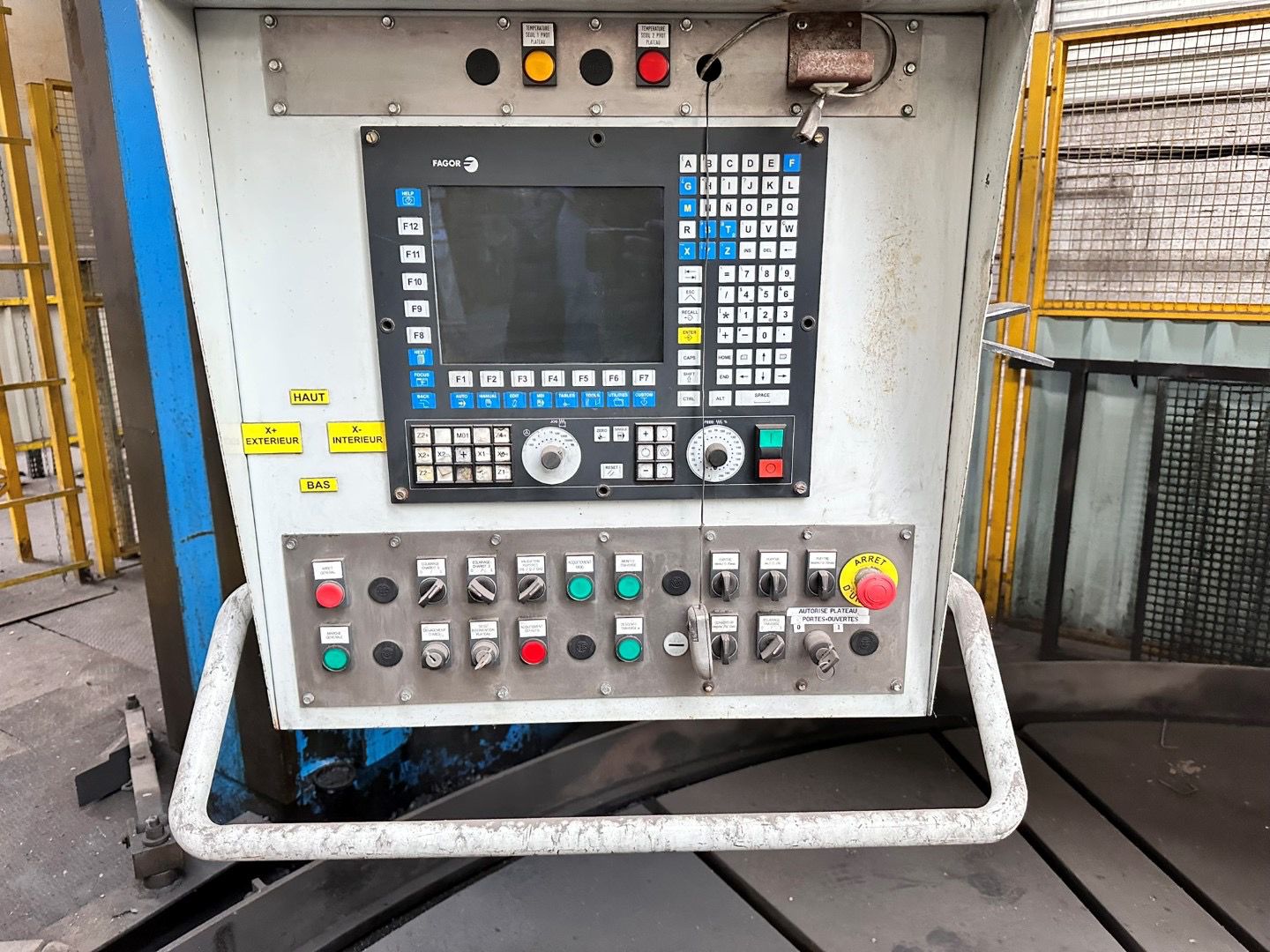

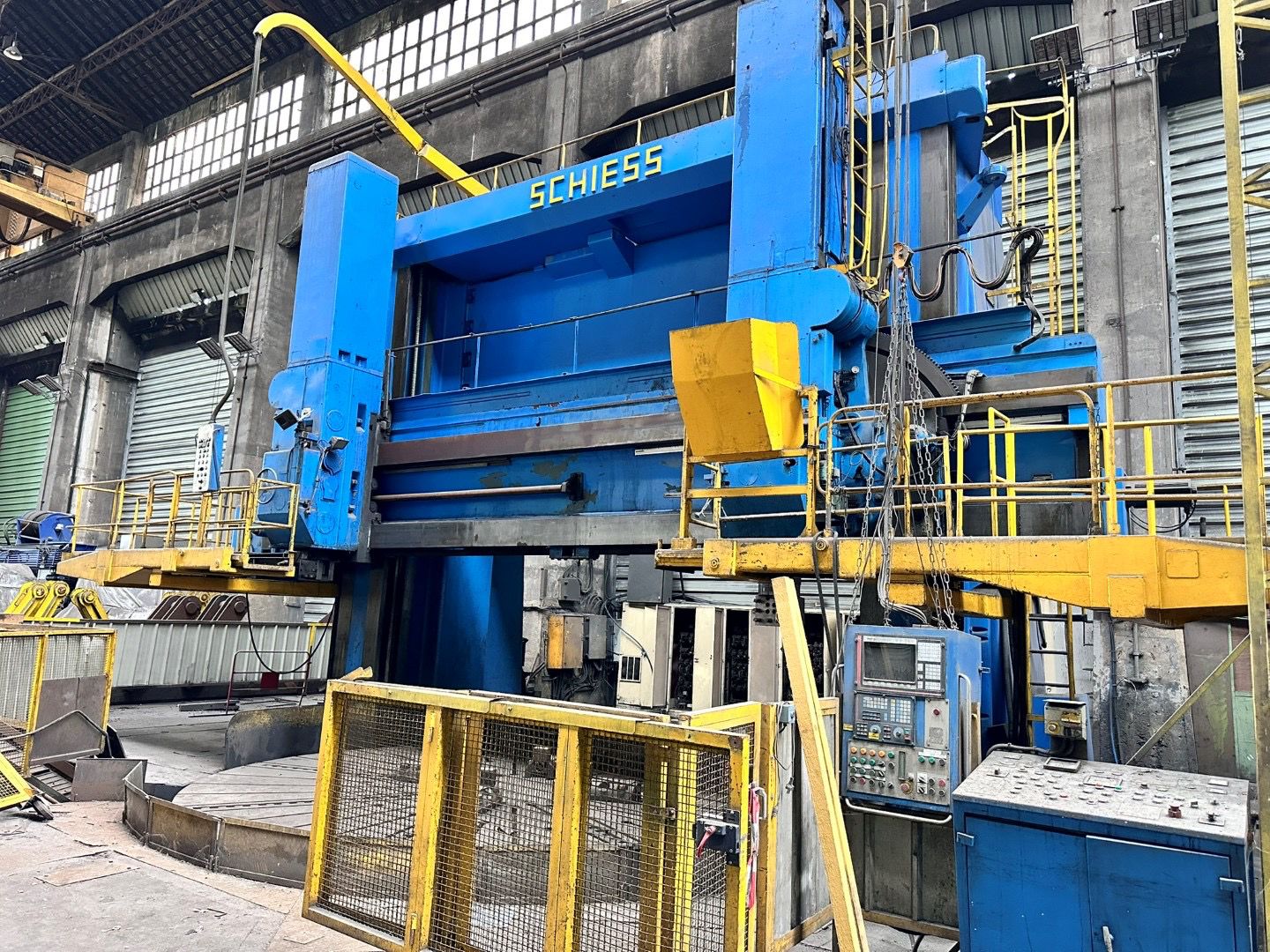

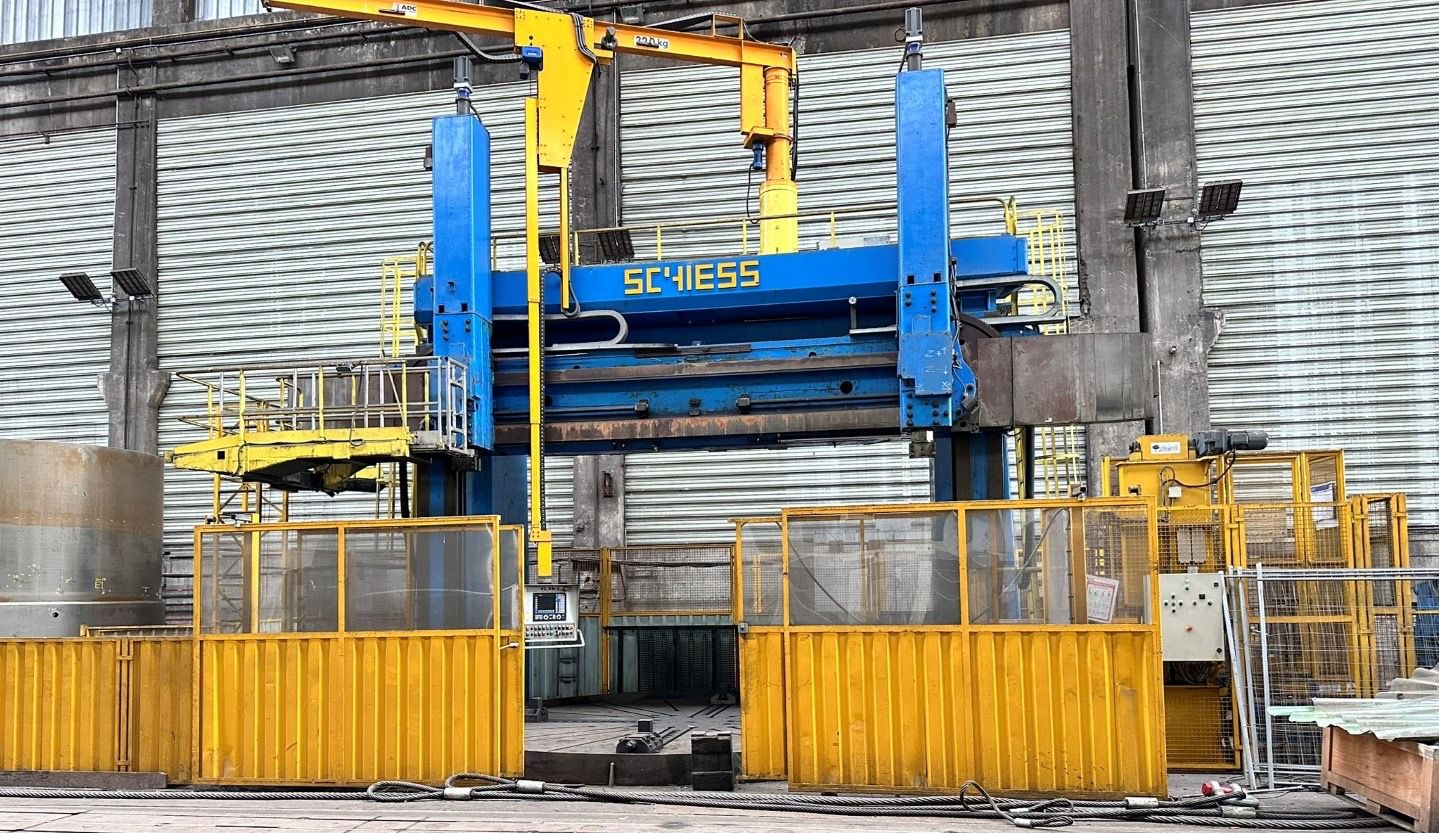

Heavy Duty CNC VTL 6500 mm x 4000 mm height Schiess

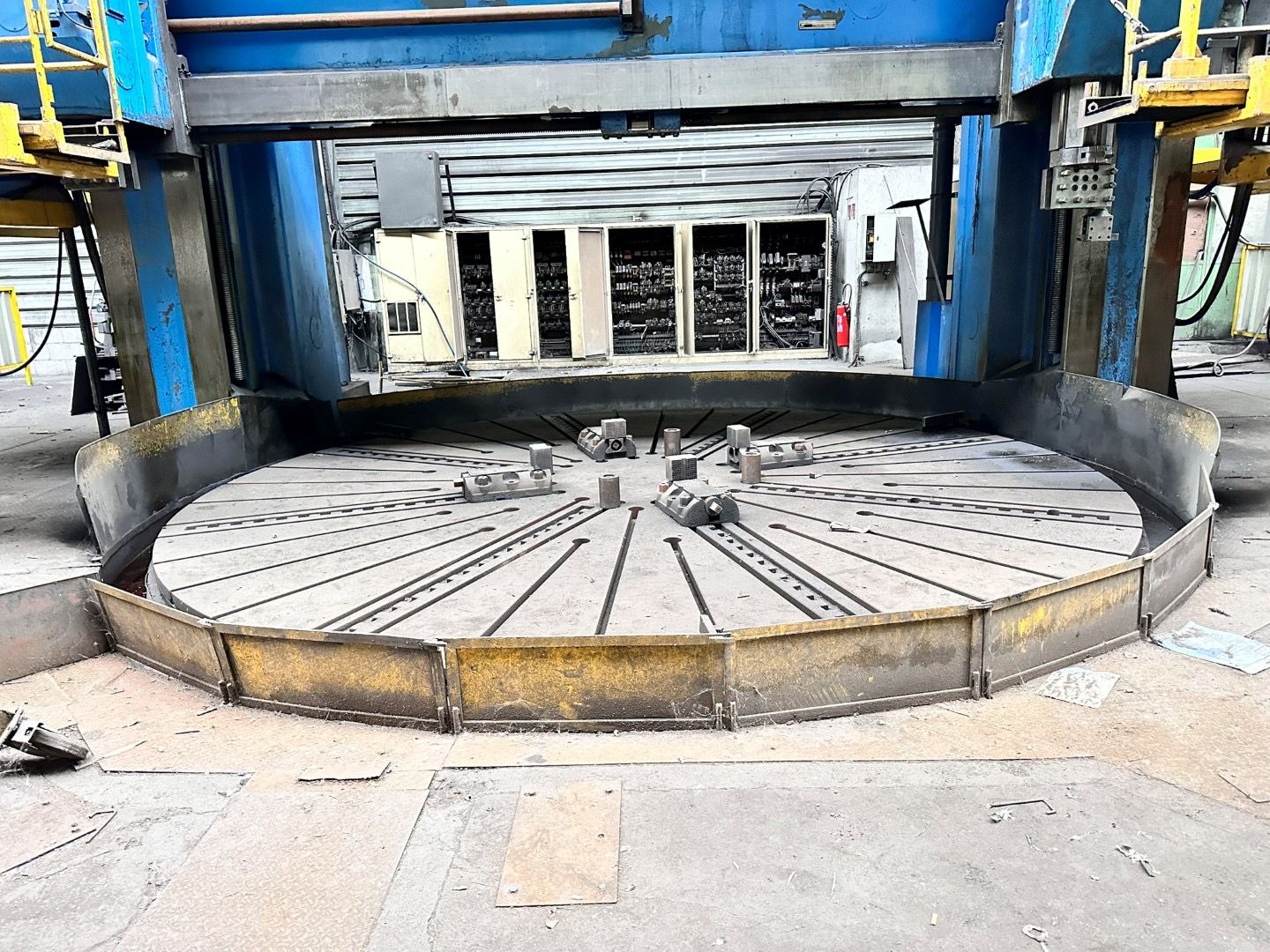

- Chuck dia - 6000 mm
- Max. turning dia - 6500 mm
- Max. swing dia - 6600 mm
- Ram travel vertical - 2100 mm
- Ram travel horizontal - 3250 mm
- Workpiece weight - 80 Tonnes
- Machine weight - aprox 220 Tonnes
Heavy Duty CNC VTL 6500 mm x 3500 mm Schiess
- Chuck dia - 5420 mm
- Max. turning dia - 6540 mm
- Max. turning height - 3500 mm
- Ram travel vertical - 1680 mm
- Ram travel horizontal - 3250 mm
- Workpiece weight - 80 Tonnes
- Machine weight - aprox 190 Tonnes

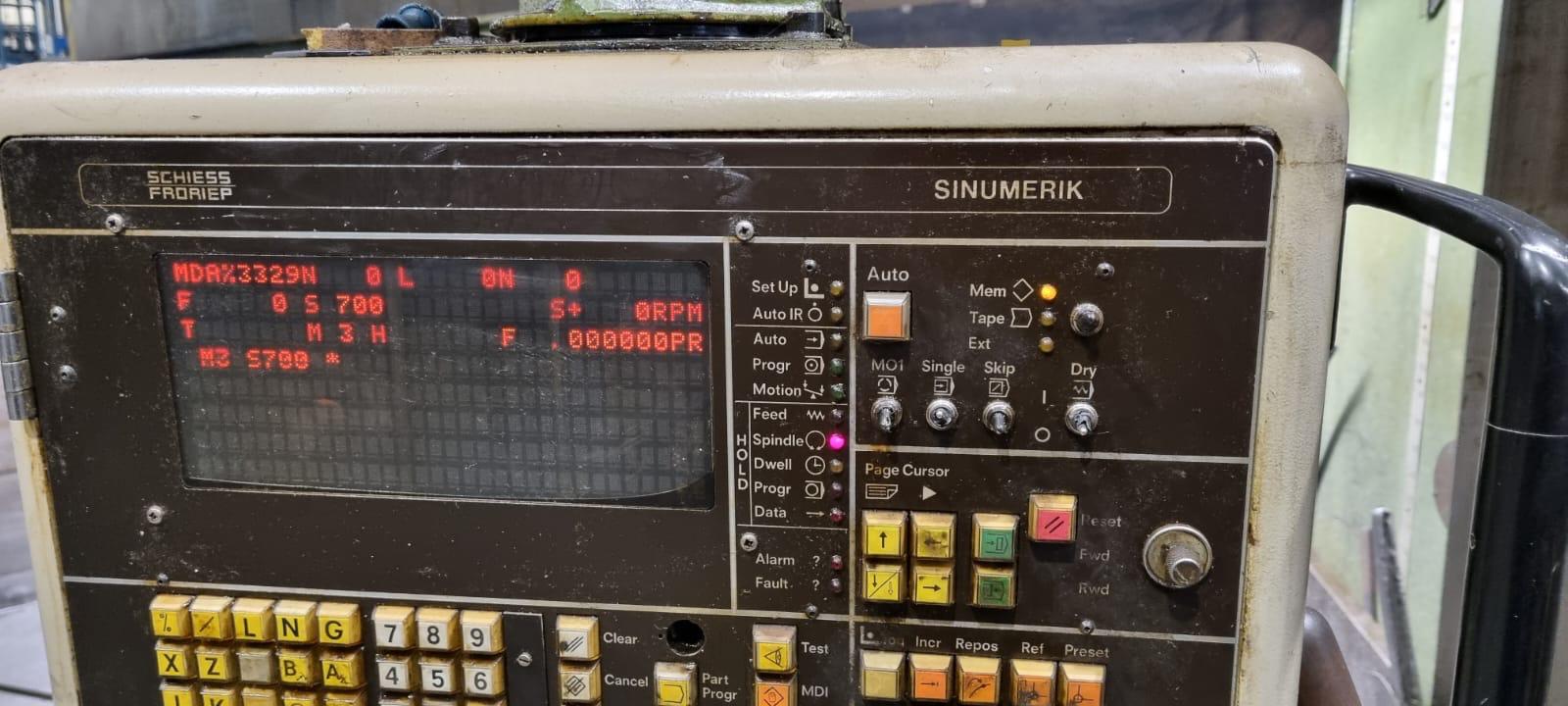

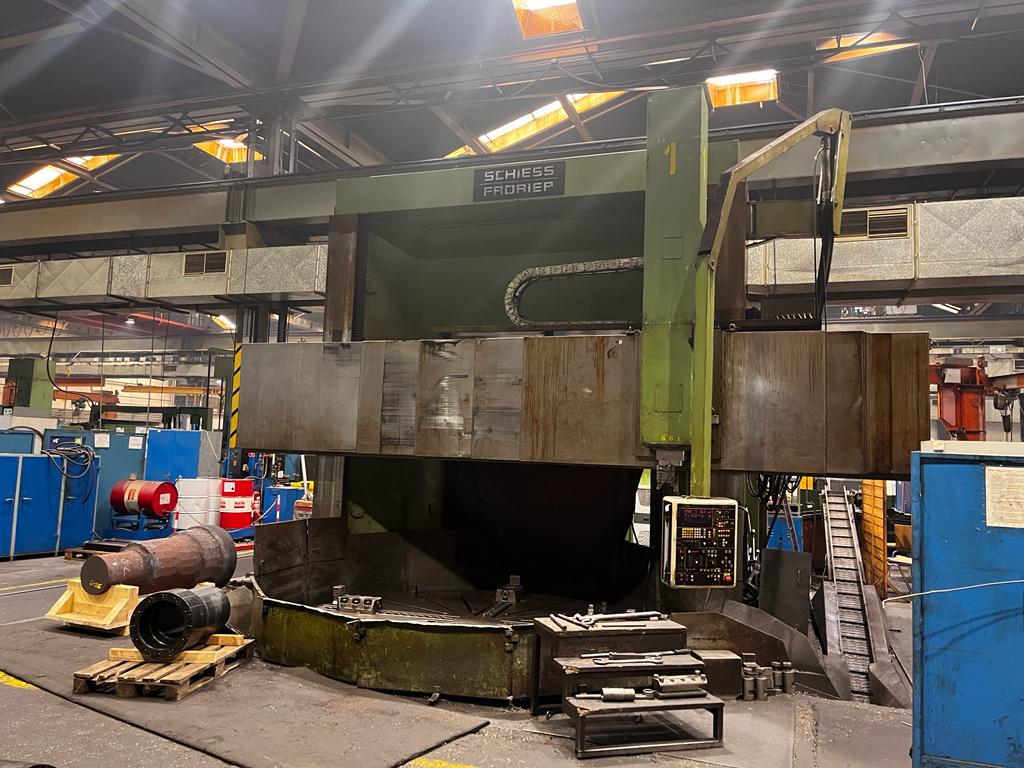

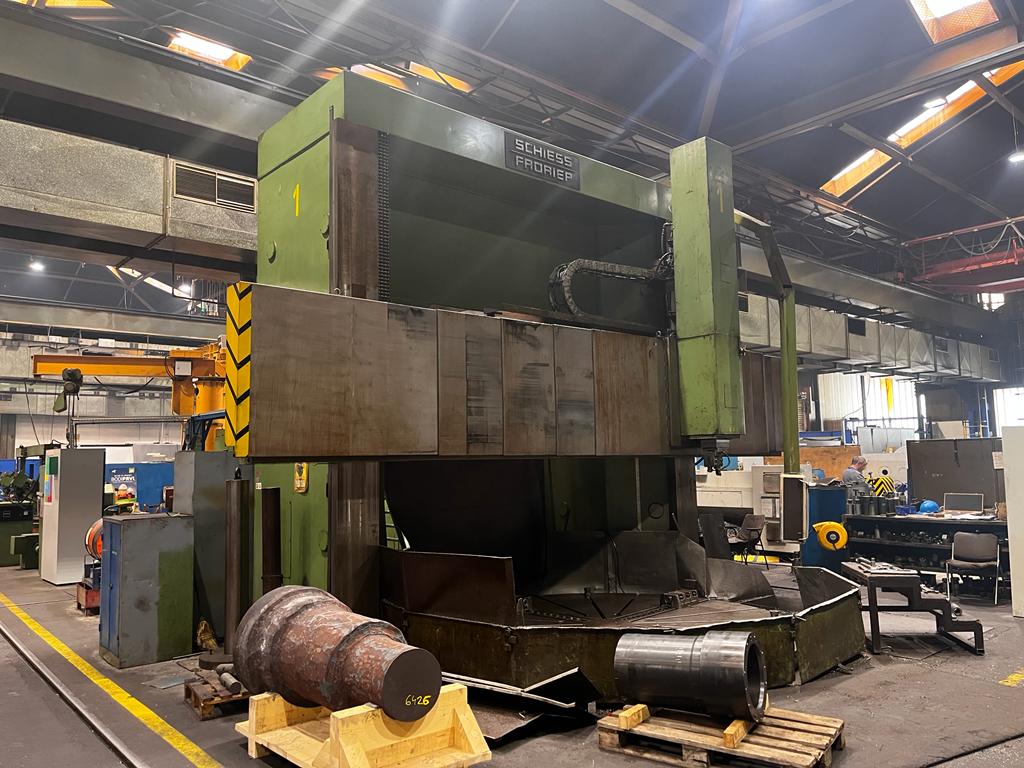

Heavy Duty CNC VTL 6500 mm x 3500 mm Schiess
- Chuck dia - 3500 mm mm
- Max. turning dia- 4000 mm
- Max. turning height- 2500 mm
- Max. Table load cap- 40 Tonnes
- Table speed- up to 90 rpm
- Main spindle motor- 71 KW
- Ram travel vertical- 1600 mm
- Ram travel horizontal- 2200 mm
- Ram cross-section- 250 x 210 mm
- Cutting feed- 0.1-1000 mm/min
- Rapid feed- 6000 mm/min
