CNC BORING MC - TABLE BORING ＆ FLOOR BORING

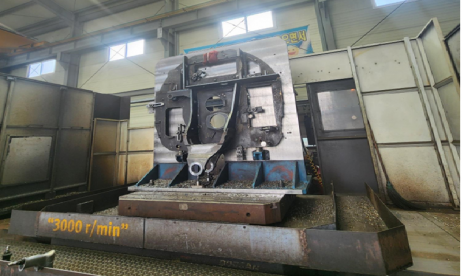

DOOSAN / DBC-110S / YEAR 2011
- X STROKE 2,000MM
- Y STROKE 1,500MM
- Z STROKE 1,200MM
- W STROKE 550MM
- RT : 1400 X 1600MM
- SPINDLE SPEED MAX. 3,000 RPM
- CNC SYSTEM : FANUC 32IA
- ATC 40
- SPLASH GUARD

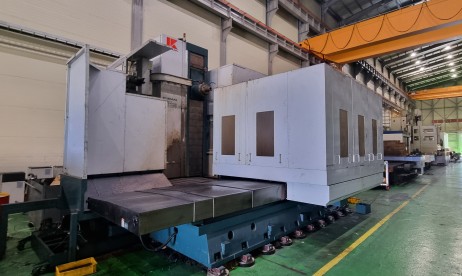

KURAKI / KBT-13EBA / YEAR 2017
- X STROKE 3,000MM
- Y STROKE 2,300MM
- Z STROKE 1,600MM
- W STROKE 650MM
- RT : 2000 X 2200MM
- CNC SYSTEM : FANUC 31IB5
- ATC 40
- COOLANT THRU SPINDLE 30 BAR
- UNIVERSAL HEAD(L=400)
- RIGHT ANGULAR HEAD(L=700)
- LINEAR SCALE (HEIDENHAIN)

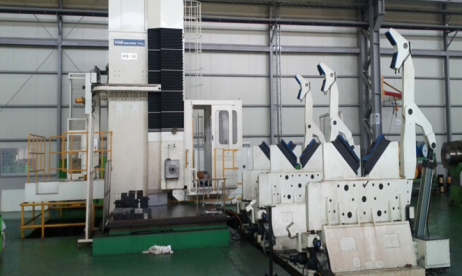

HNK / HFB-150 / YEAR 2009
- X STROKE 6,000MM
- Y STROKE 3,000MM
- Z STROKE 800MM
- W STROKE 700MM
- FLOOR PLATE : 2500 X 3000MM
- CNC SYSTEM : FANUC 18IMB
- ATC 40
- NO ROTARY TABLE

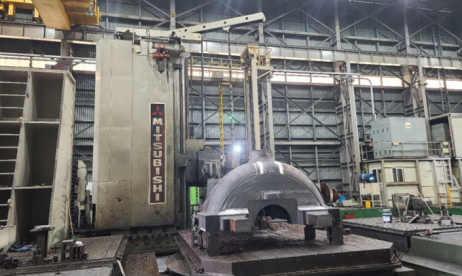

MITSUBISH / MAF-280 / RETROFITTED IN YEAR 2008
- X STROKE 16,800MM
- Y STROKE 5,000MM
- Z STROKE 1,000MM
- W STROKE 1,280MM
- ROTARY TABLE : 6,000 X 4,500MM
- V STROKE : 3,000MM
- LOAD CAPACITY 150TON
- CNC SYSTEM : SIEMENS 840D
- ATC 40
- FLOOR PLATE (4000 X 8000 + 3600 X 5000)
- 90 DEG. ANGLE HEAD(L850)
- EXTENSION HEAD(2,500)
- UNIVERSAL HEAD(L1300)
- LINEAR SCALE (X,Y-AXIS)
