CNC VERTICAL LATHE

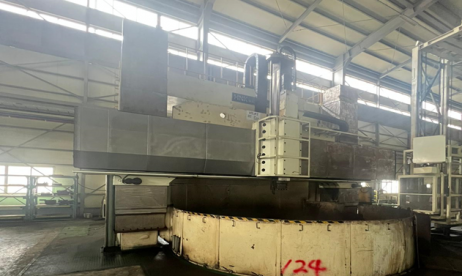

HNK / NT-45/50 / YEAR 2009
  • TABLE ⏀4,500MM
  • SWING ⏀5,000MM
  • MAX. TH : 3,200MM
  • RAM STROKE 1,600MM
  • SPINDLE MOTOR : DC 96KW
  • CROSSRAIL : 250 X 7 STEPS
  • CNC : FANUC 31IA
  • OPERATOR PLATFORM

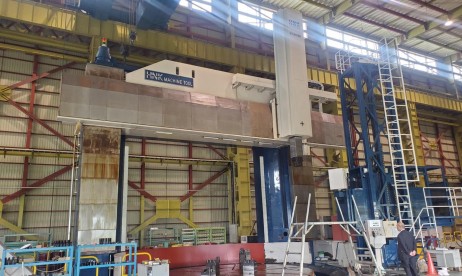

HNK / NT-60/80 / YEAR 2015
  • TABLE ⏀6,000MM
  • SWING ⏀8,000MM
  • MAX. TH : 5,000MM
  • RAM STROKE 2,500MM
  • SPINDLE MOTOR : AC 200KW
  • CROSSRAIL : 250 X 13 STEPS
  • CNC : FANUC 31IA
  • ATC 12
  • OPERATOR PLATFORM

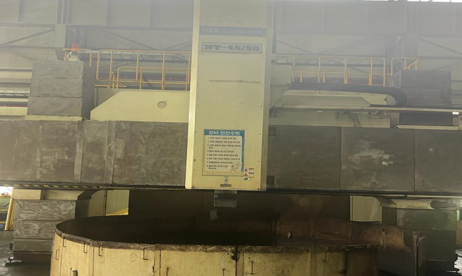

HNK / NT-4550 / YEAR 2007
  • TABLE ⏀4,500MM
  • SWING ⏀5,000MM
  • MAX. TH : 2,000MM
  • SPINDLE MOTOR : DC 96KW
  • RAM STROKE 1,500MM
  • CROSSRAIL : 250 X 4 STEPS
  • CNC : FANUC 18ITB

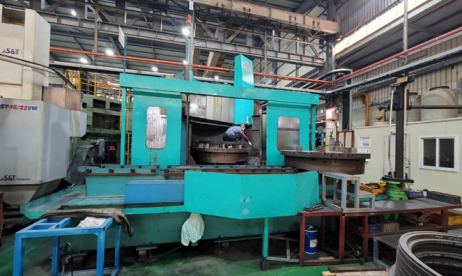

SHIBAURA / TUD-16 / YEAR 1991
  • TABLE ⏀1,600MM
  • SWING ⏀2,000MM
  • MAX. TH : 1,190MM
  • X STROKE -805~+1,120
  • RAM STROKE 800MM
  • RAM SIZE 220 X 220
  • CROSSRAIL TRAVEL 500MM
  • OTABLE SPEED 280 RPM
  • SPINDLE MOTOR : AC 30/37KW
  • CNC : FANUC 18T
  • ATC 12
  • APC
