CNC DOUBLE COLUMN MACHINING CENTER

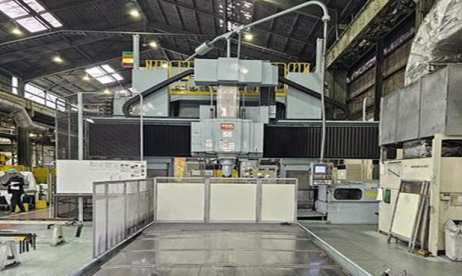

SNK / DC-5ANM / YEAR 2019
- X STROKE 6,250MM
- Y STROKE 3,700MM + 850MM(AAC)
- Z STROKE 800MM
- W STROKE 1,450MM
- BETWEEN COLUMN 3,000MM
- HEIGHT 2550MM
- TABLE SIZE : 2,500 X 5,000MM
- SPINDLE SPEED 6,000 RPM
- CNC SYSTEM : FANUC 31iB
- ATC 60 POTS
- AAC
- CENTER SWING UAA(L=750)
- EXTENSION HEAD(L=600)
- HIGH SPEED EXTENSION(L=600)
- LINEAR SCALE (X,Y,Z-AXIS)

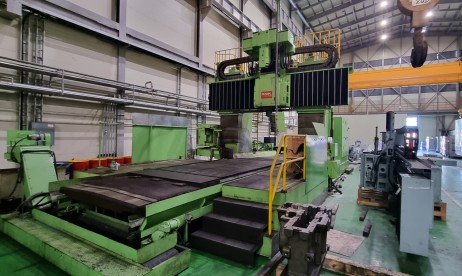

SNK / DC-4ASM / YEAR 1998 (Retrofitted in 2008)
.jpg)
- X STROKE 4,300MM
- Y STROKE 2,900MM
- Z STROKE 800MM
- W STROKE 1,200MM
- BETWEEN COLUMN 2,700MM
- TABLE SIZE : 2,000 X 4,000MM
- SPINDLE SPEED 6,000 RPM
- CNC SYSTEM : FANUC 31iA
- ATC 40 POTS
- AAC 1EA
- ANGLE HEAD (90DEG. 15DEG. INDEX)
- LINEAR SCALE (X, Y, Z-AXIS)

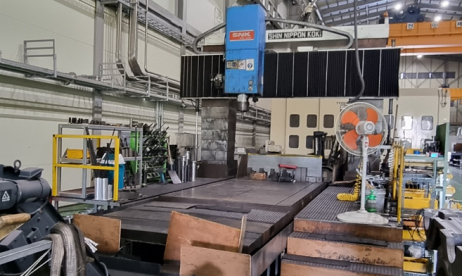

SNK / RB-4NM / YEAR 1998
- X STROKE 4,200MM
- Y STROKE 3,000MM
- Z STROKE 600MM
- W STROKE 1,400MM
- BETWEEN COLUMN 2,750MM
- HEIGHT 1,800MM
- TABLE SIZE : 2,000 X 4,000MM
- SPINDLE SPEED 6,000 RPM
- CNC SYSTEM : FANUC 18M
- ATC 40 POTS
- AAC
- 90 DEG. ANGLE HEAD
- UNIVERSAL HEAD
