5-axis (Universal Machining)

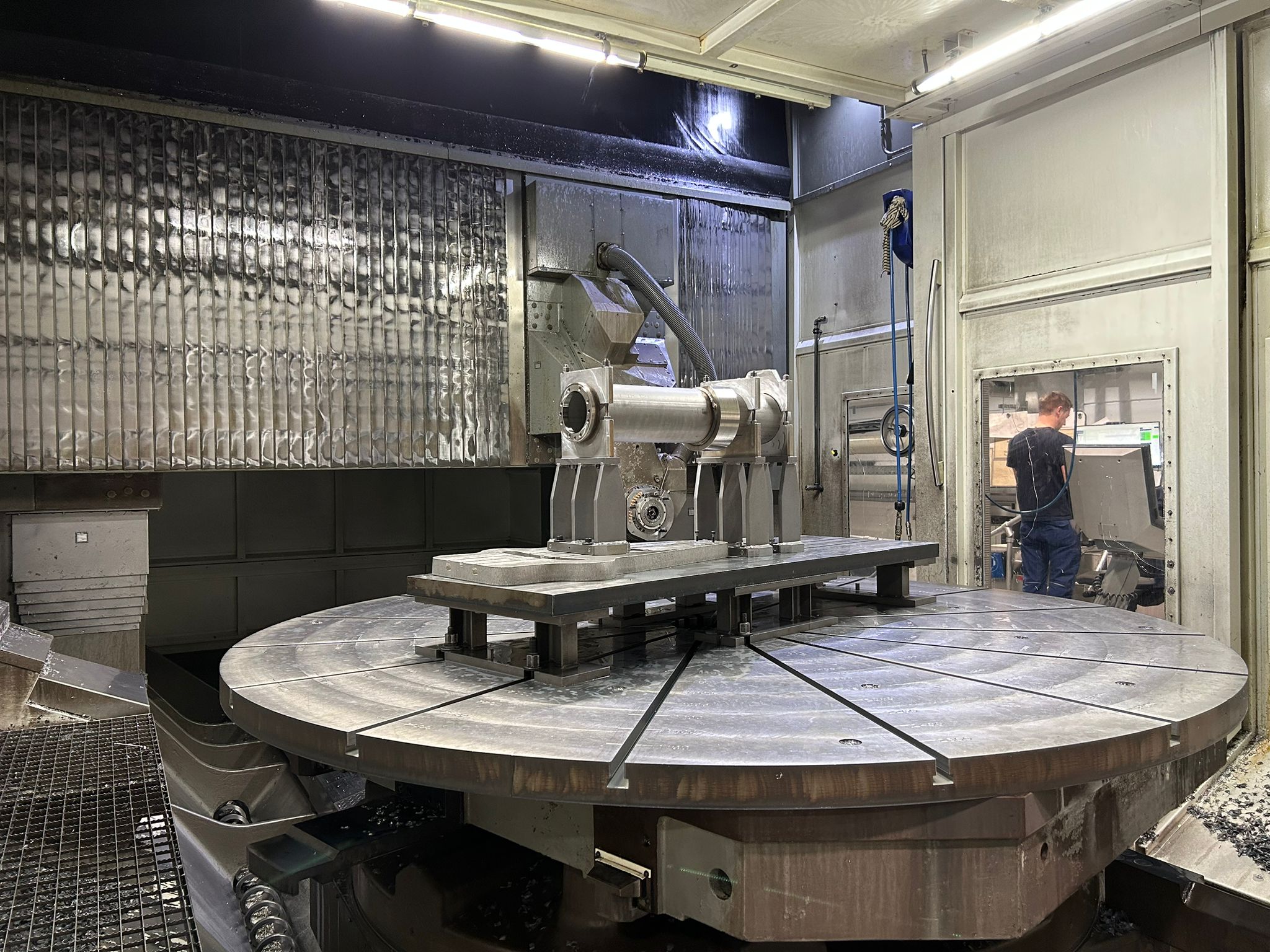

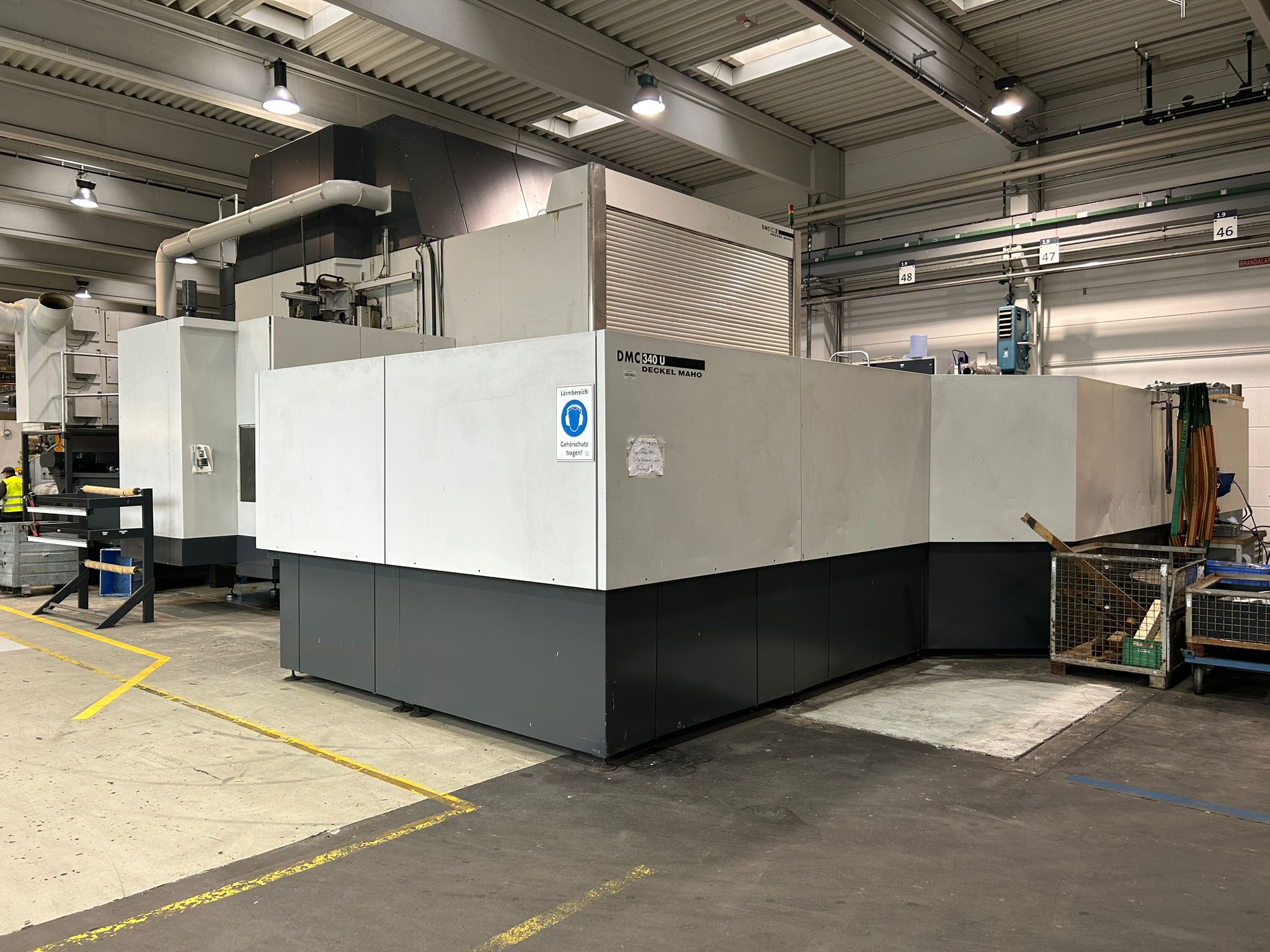

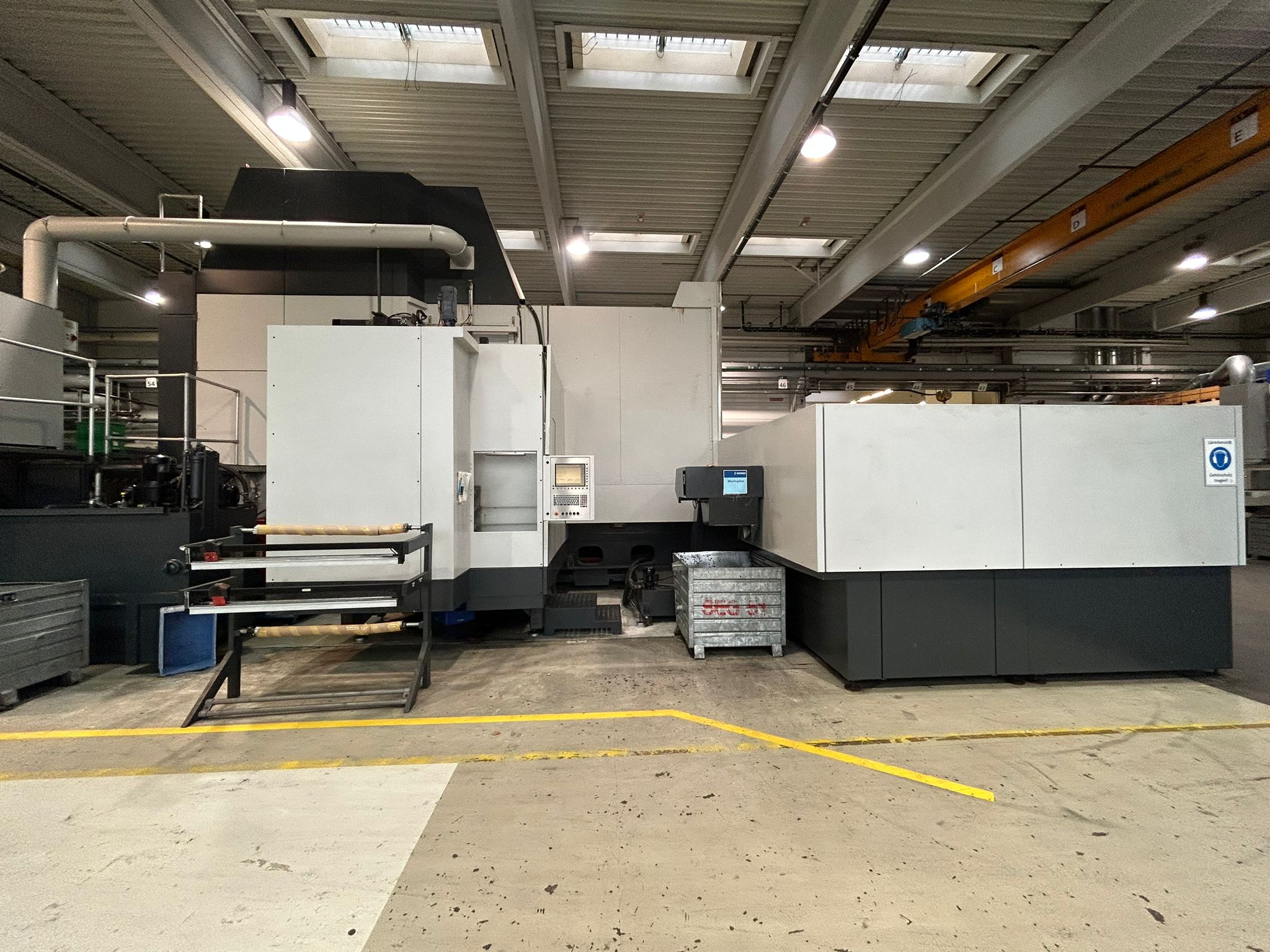

DMC 340 U 5-axis Large Machining Center
- X-Axis - 2.800 mm (Cross)
- Y-Axis - 3.400 mm (Longitudinal)
- Z-Axis - 1.600 mm (Vertical)
- B-Axis - Simultaneous
- C-Axis - Simultaneous
- Spindle speeds - 10,000 rpm
- Max. Tool Diameter - 300 mm
- Rapid motion (X/Y/Z) - 60 / 30 / 40 m/min
- Spindle power - 44/32 KW
- Torque - 288 NM
- Tool Taper - HSK 100
- Tool capacity - 120
- Tool diameter - 130 / 250 mm
- Tool length - 650 mm
- Tool weight - 30 Kg
