Grinding Machines

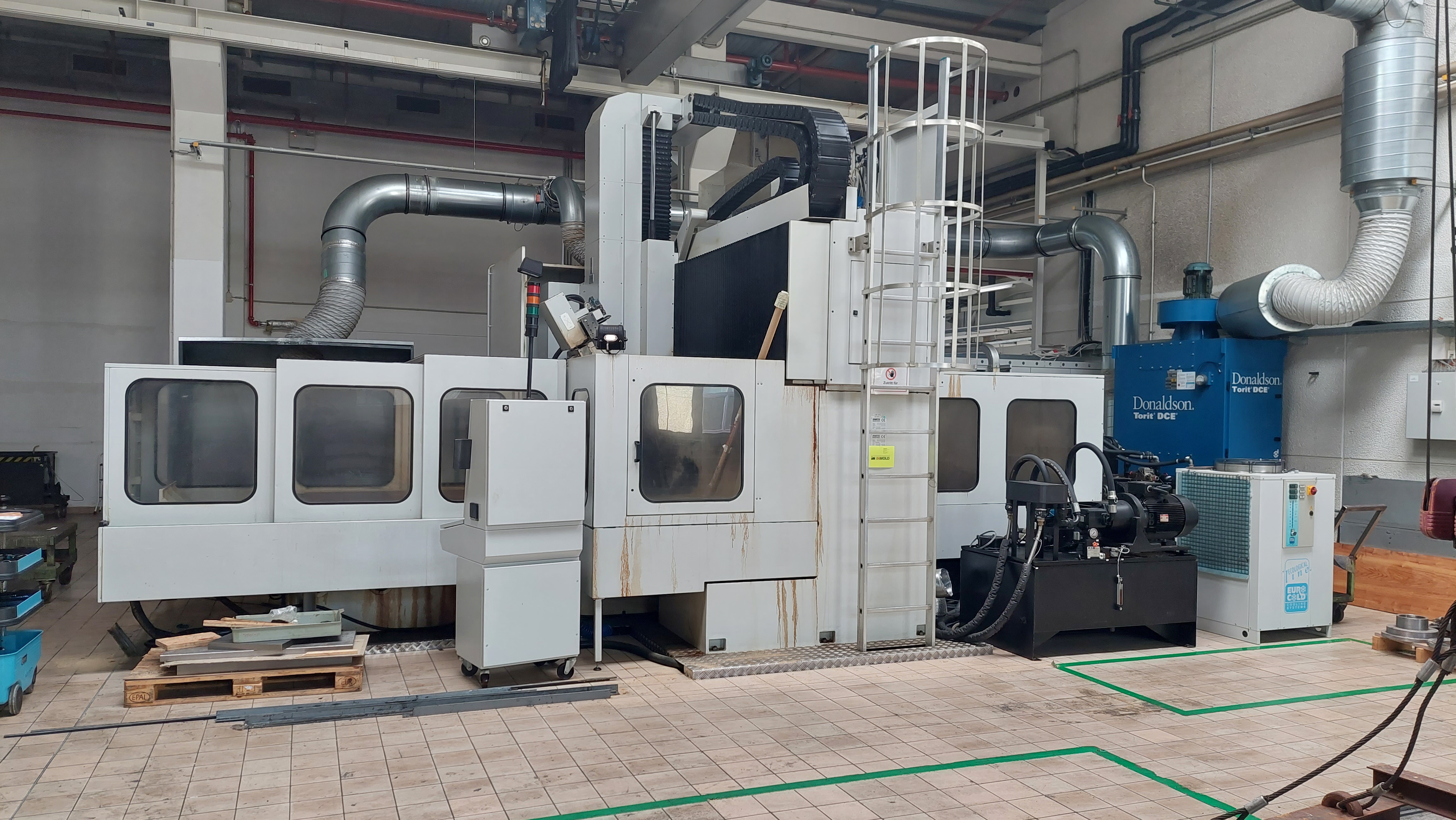

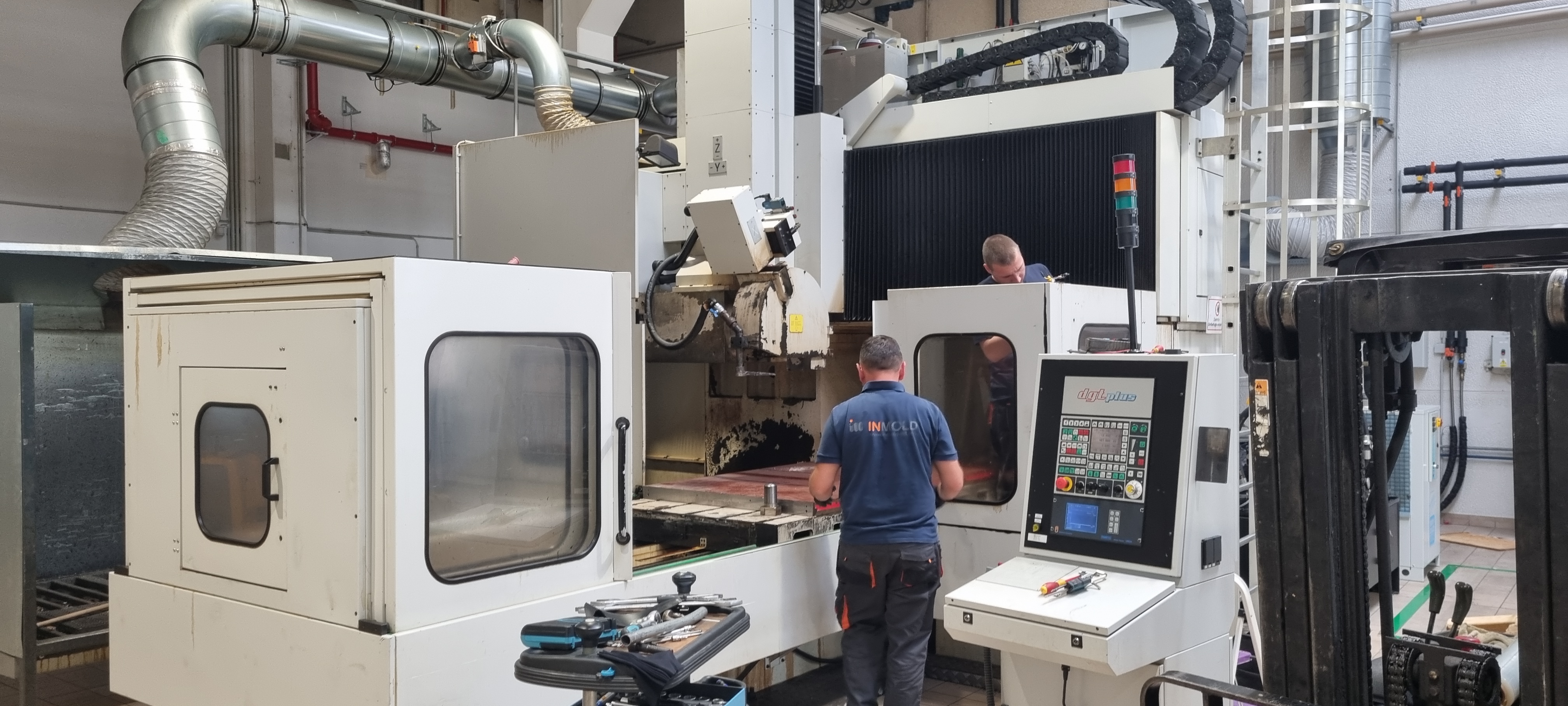

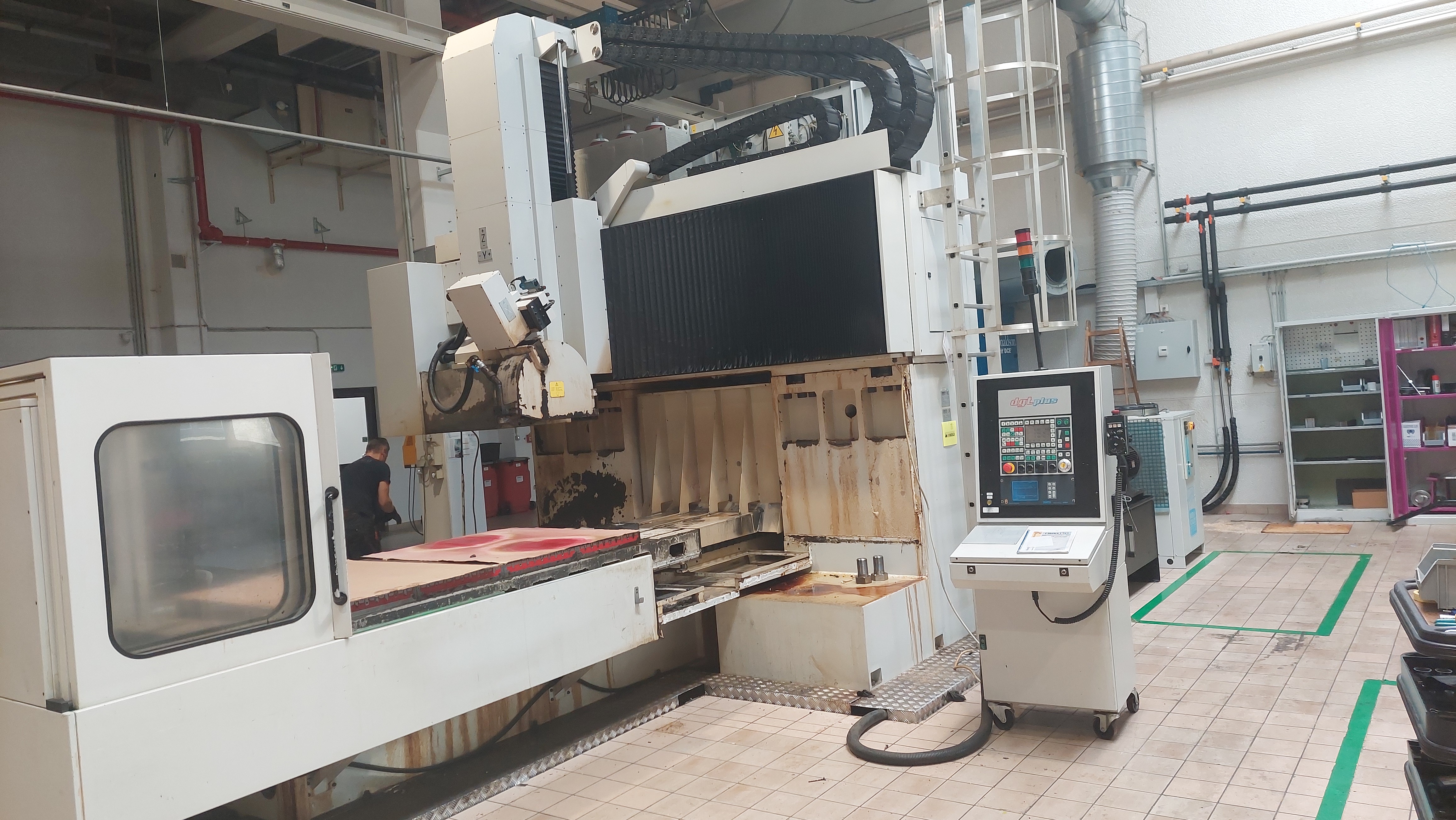

CNC Portal Surface Grinding Machine Favretto MFD 200 CNC
- Grinding Length - 2400 mm
- Grinding Width - 1290 mm
- Grinding Height - 700 mm
- Magnetic Table - 2000 x 1100 mm
- Max. Table Load Capacity - 5000 Kg
- Grinding Wheel Width - 150 mm
- Grinding Spindle Speed - 960 rpm
- Machine Weight - Approx. 30 Tonnes
Surface & Profile Grinder ELB 2000 x 900 mm
- Max Grinding length - 2000 mm
- Max Grinding width - 900 mm
- Max Grinding Height - 920 mm
- Magnet table size - 2000 x 700 mm
- Table load capacity - 2000 kg
- Grinding wheel dia max - 400 x 100 x 127 mm
- Cup Wheel/face Wheel - 200 x 50 x 36 mm
- Cup wheel tilting up to - 180 degree
- Diaform copy wheel dresser -
- Band filtration unit -
- Machine weight - 14 ton
- Machine size - 4,7 x 2,5 x 3 m
Suface Grinder TOS BPV 40-2000 G195
- grinding length - 2000 mm
- grinding width -400 mm
- workpiece height - 400 mm
- magnetic clamping plate, electical - 2000 x 400 mm
- total power requirement - 70 kW
- weight of the machine ca. - 13 tone
