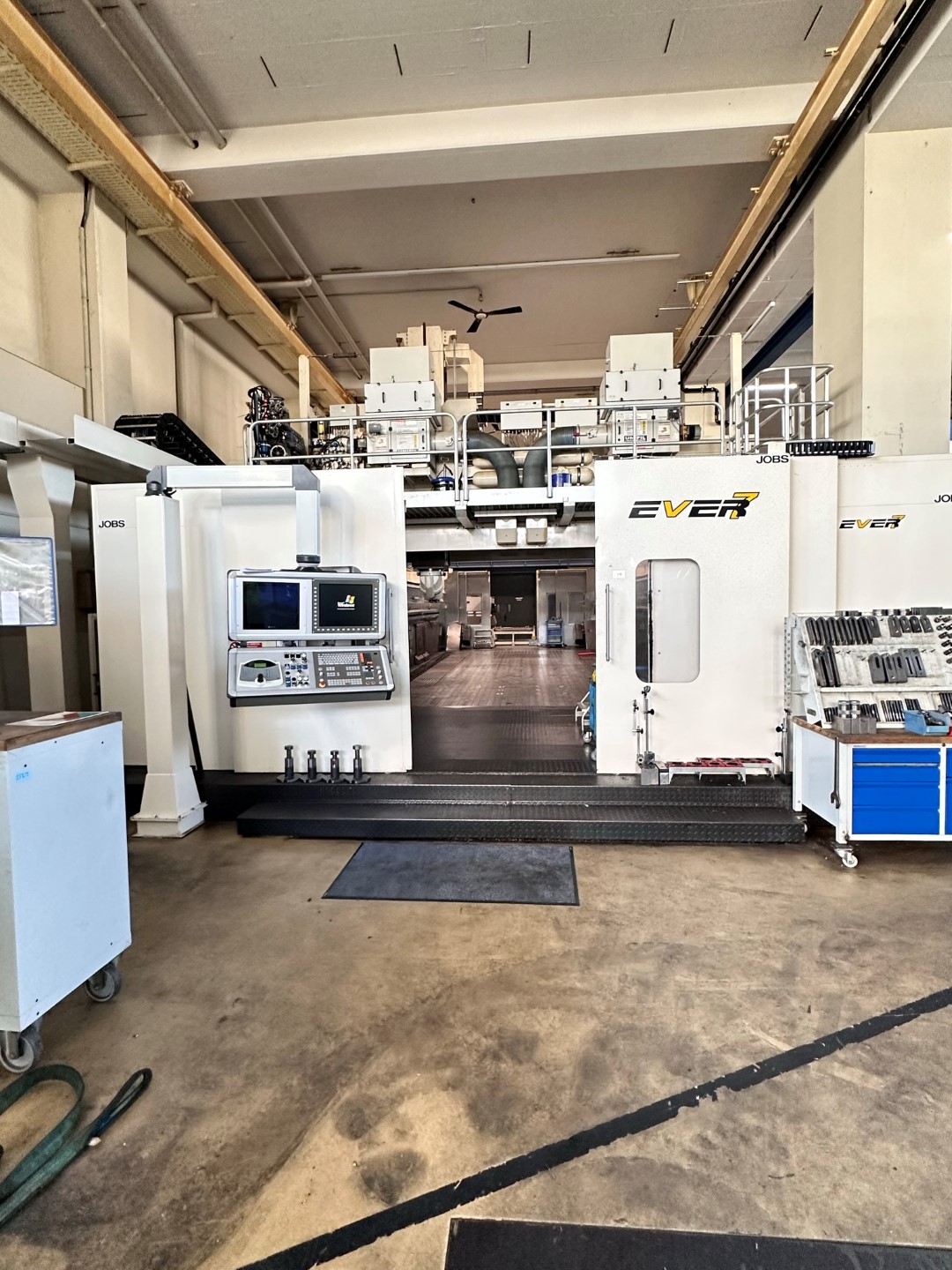

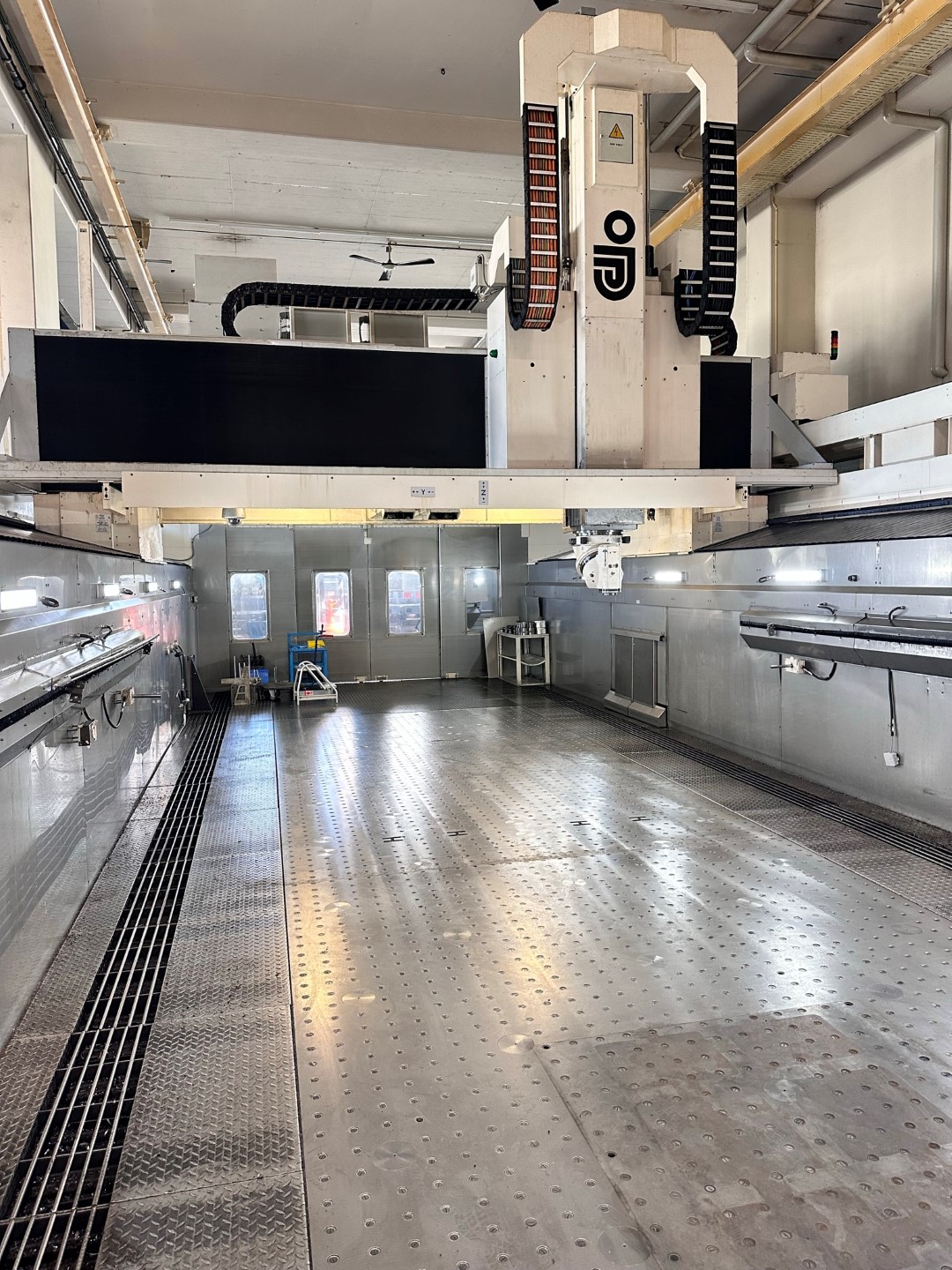

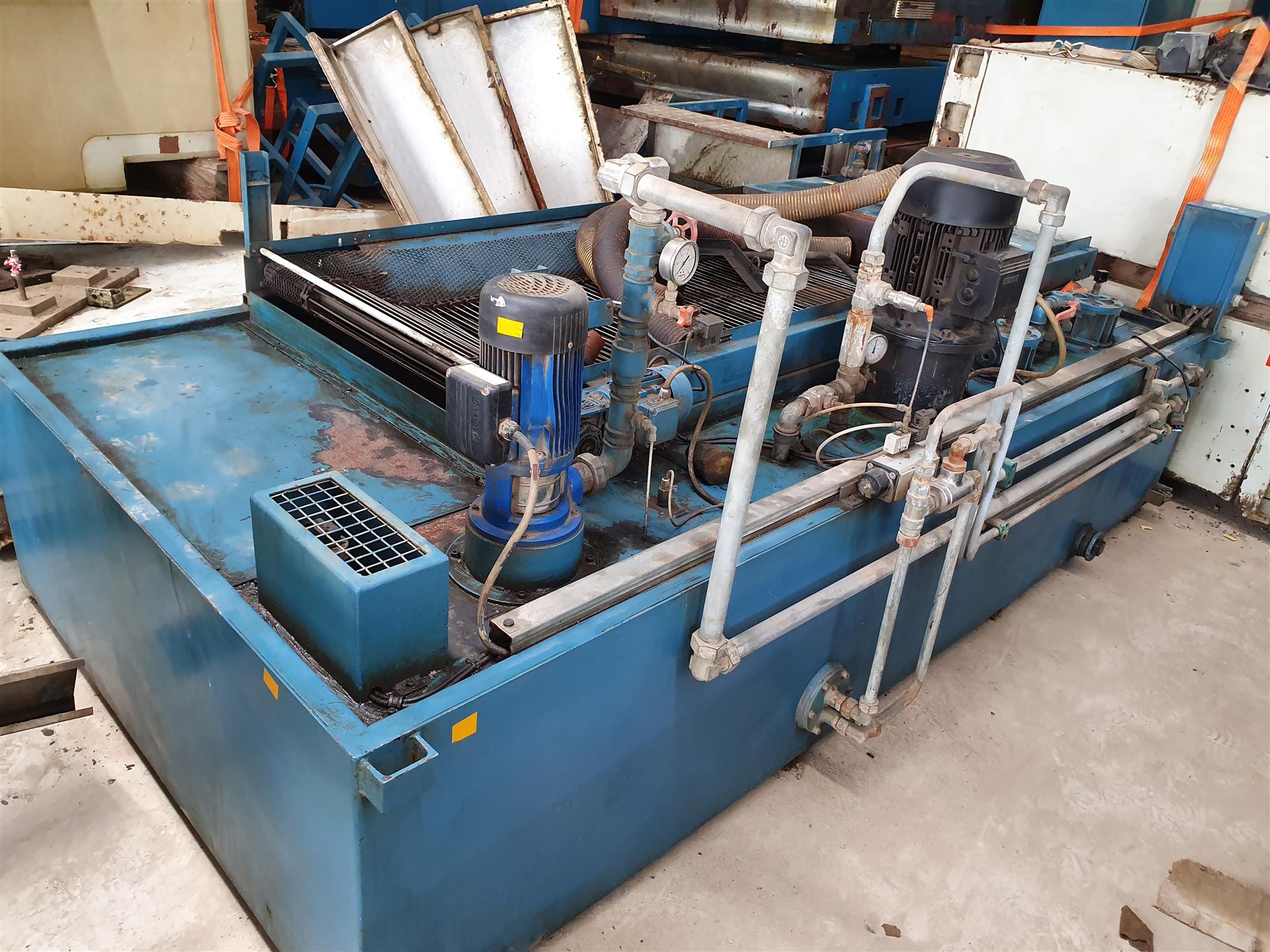

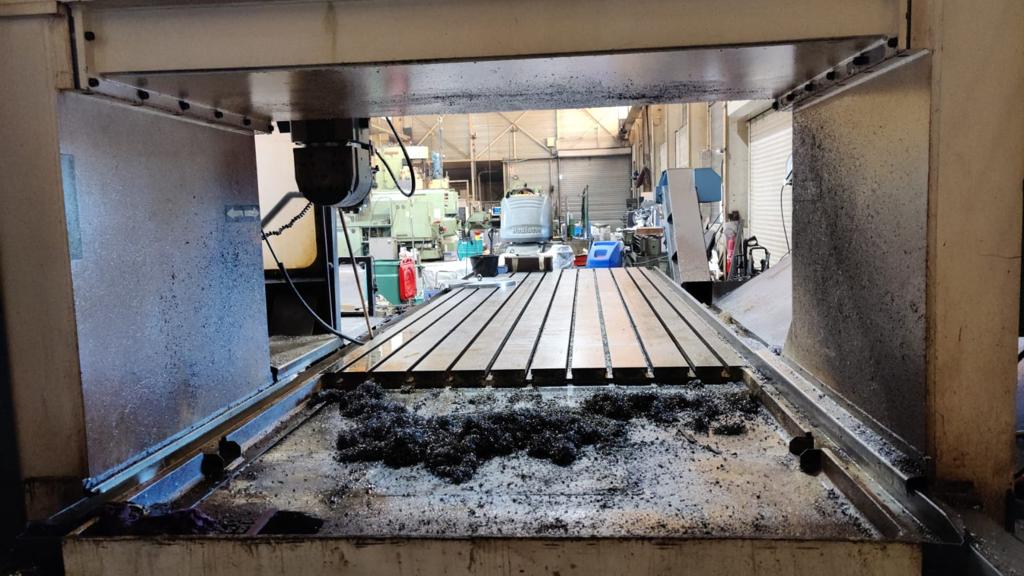

Bridge type VMC / Portal / Gantry-Machining

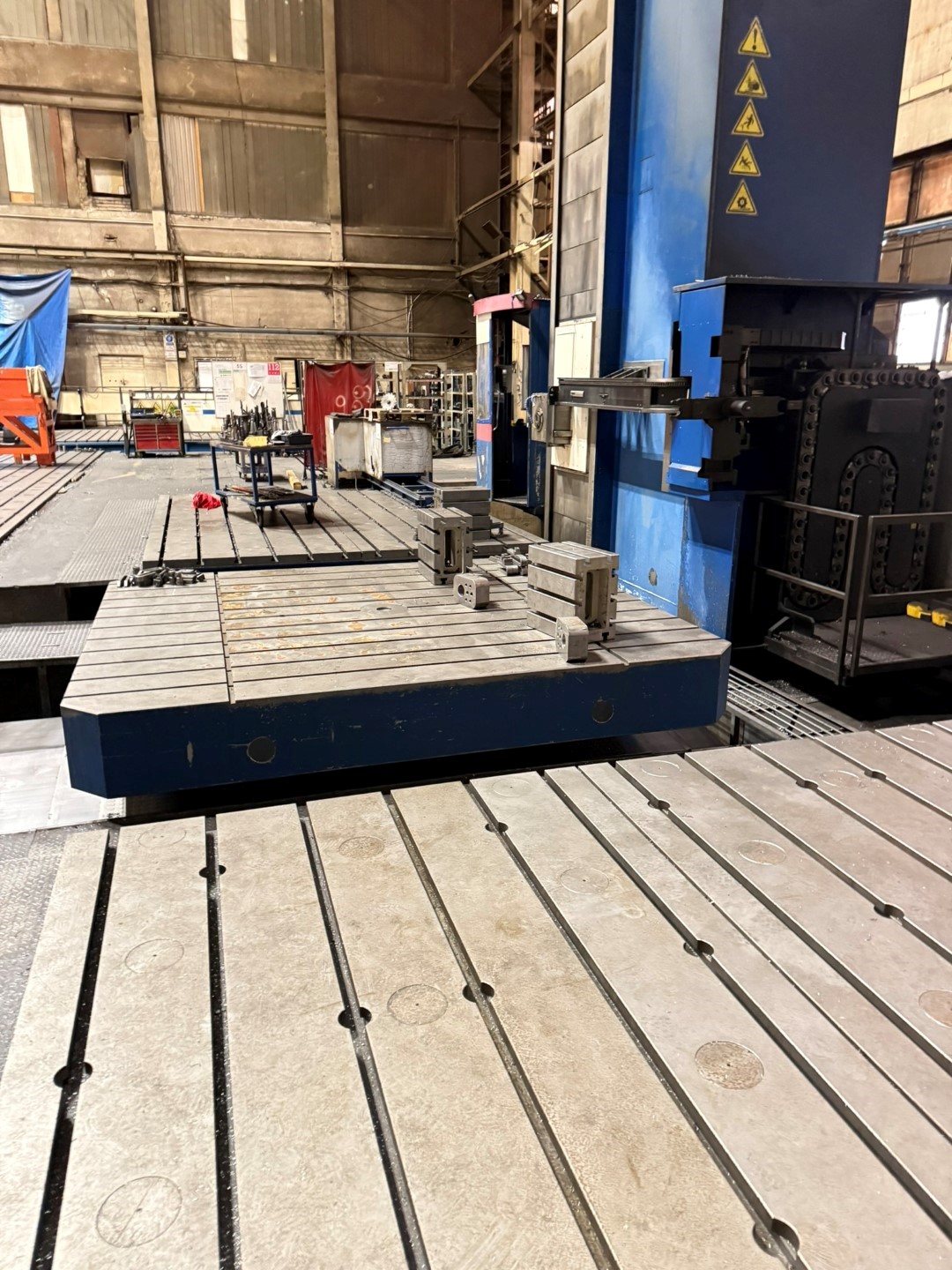

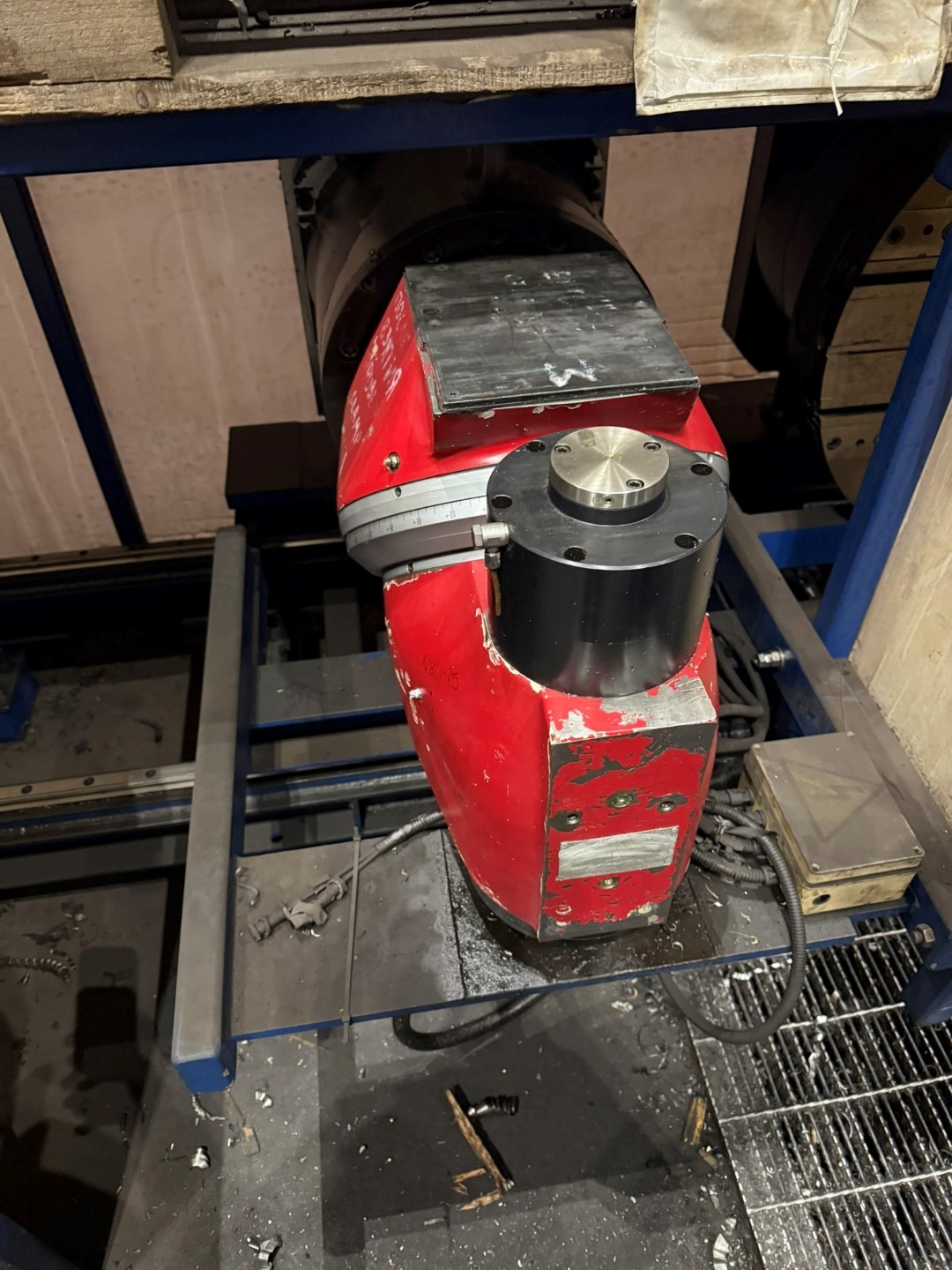

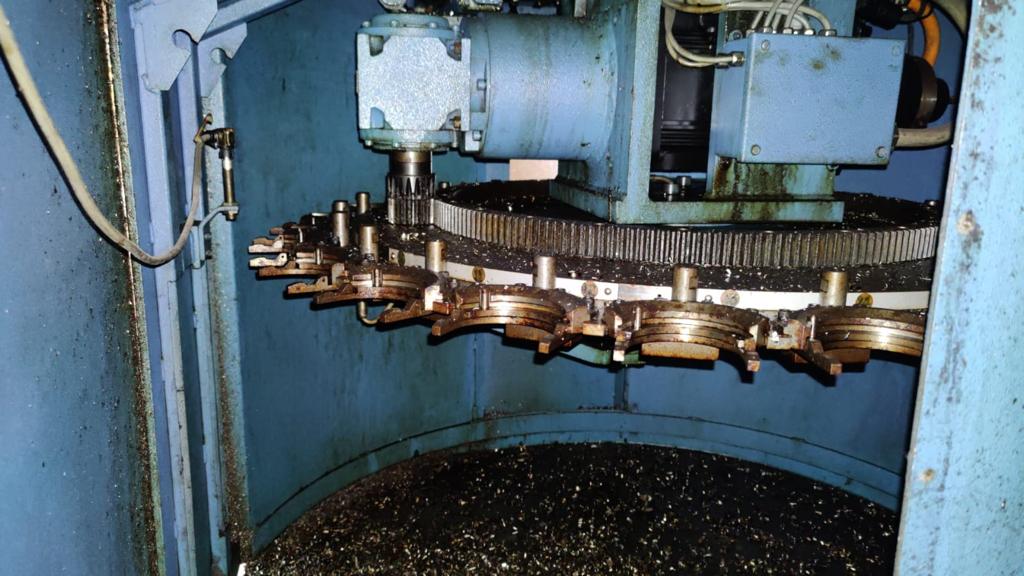

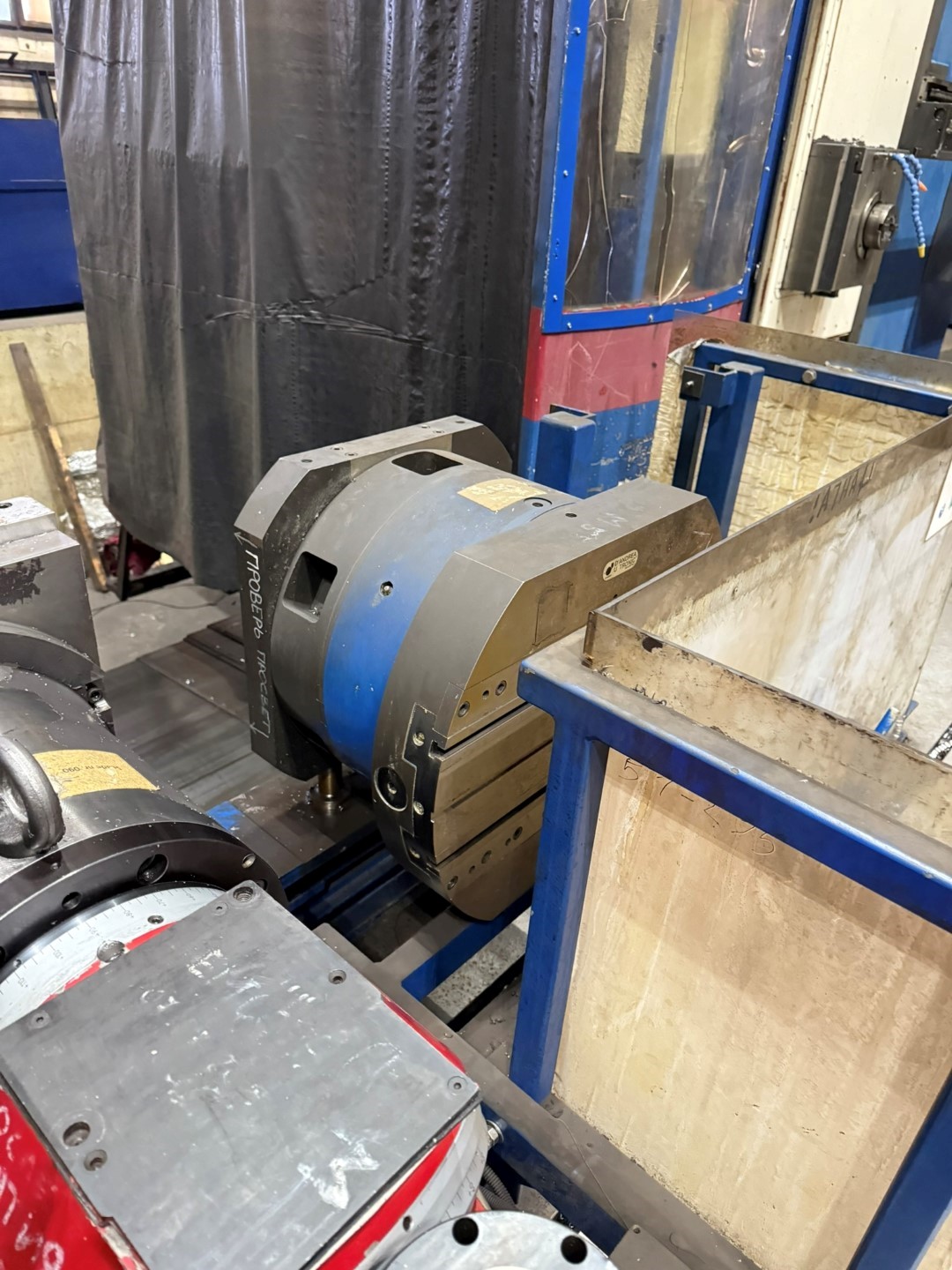

CNC GANTRY MILLING JOBS (2013) 10m x 5 m
- Travel X 10.000 mm
- Travel Y 4.000 mm
- Travel Z 1750 mm
- ATC 180 places
- Rapid feeds 36 m/min
- Spindle power 46 KW
- Table load 5 Tonnes/m²
- Spindle torque 1005 NM
- Spindle Taper HSK-A 100
- Milling Head programmable 0.02°
- Floor Plate 2 pcs. 5000 x 3000 mm
- Spindle speed up to 5000 rpm
- Max. tool weight in ATC 20 Kg
- Distance between columns 5000 mm
- Max. working height 1800 mm

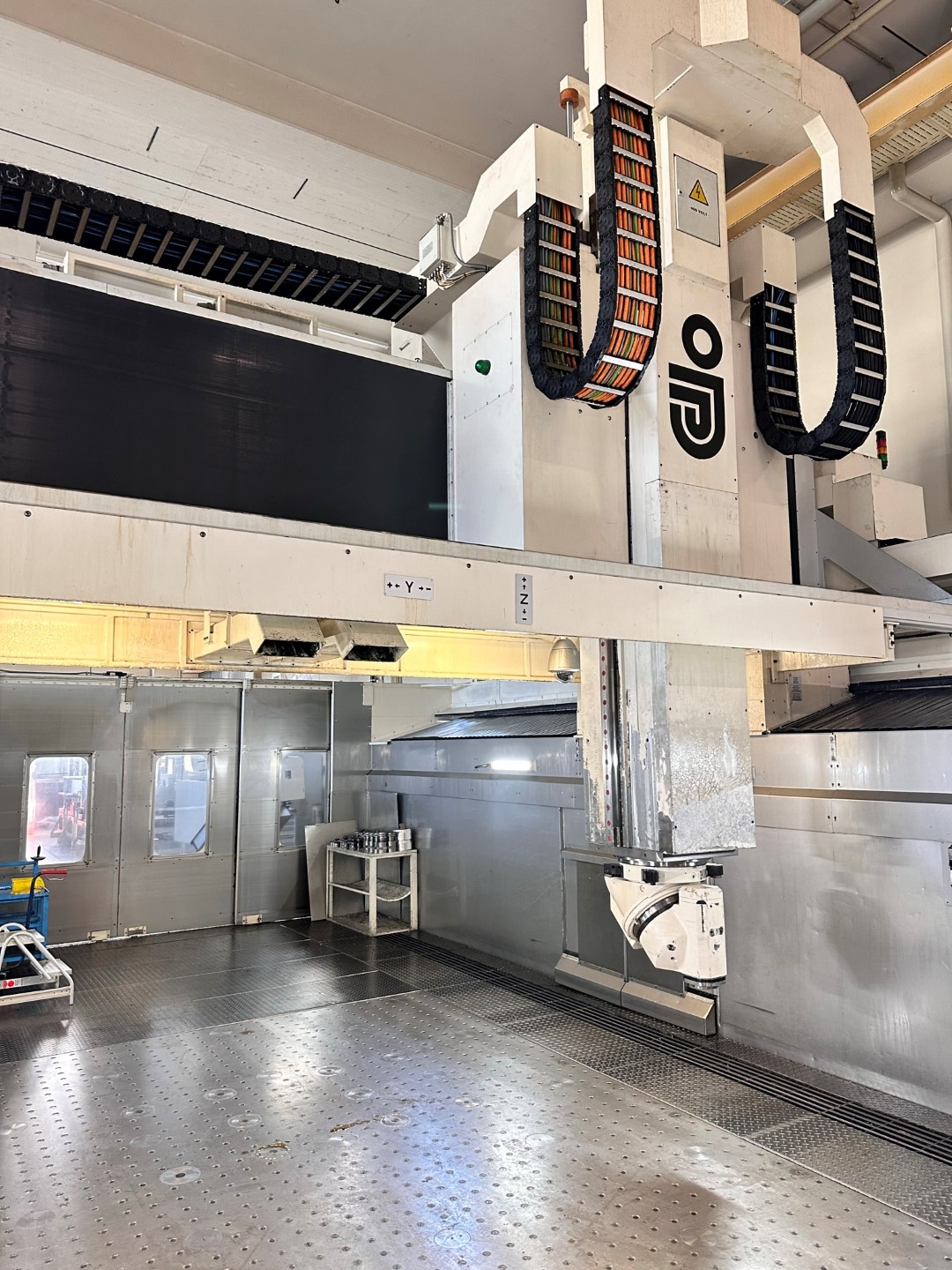

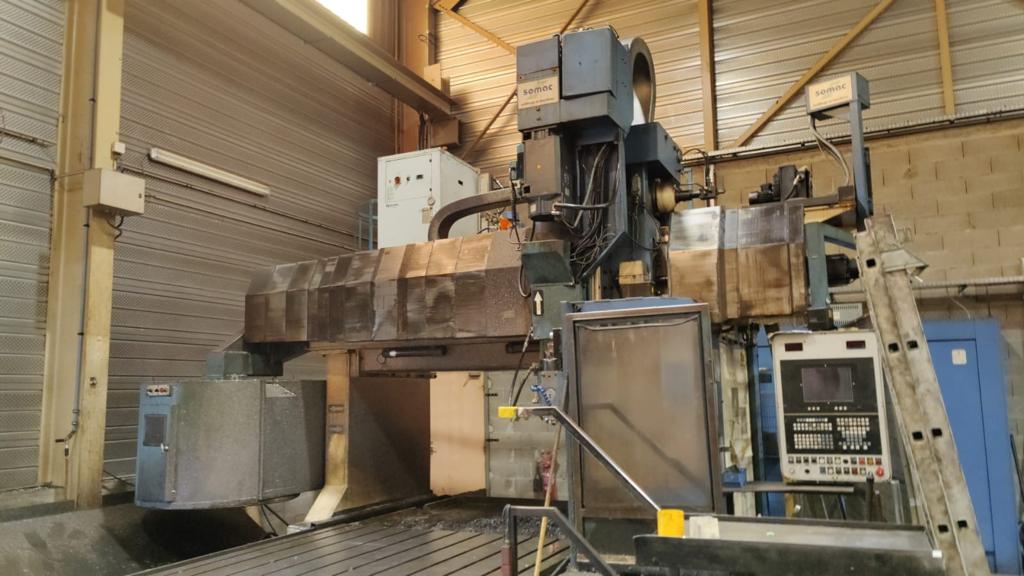

CNC Gantry Mill with 5 axis head
- X-travel 5000 mm
- Y-travel 3200 mm
- Z-travel 1500 mm
- C-travel +-200°
- A-travel +-105°
- Table size 5100 x 2800 mm
- Spindle power 37 KW
- Spindle taper SK 50
- Cutting Feeds 10 m/min
- Spindle motor Siemens 55 KW
- Distance between column 4000 mm
- Min distance spindle - table 300 mm
- Distance between cross slide and table 1900 mm
- Spindle speed 3000 rpm (2 Step gearbox)

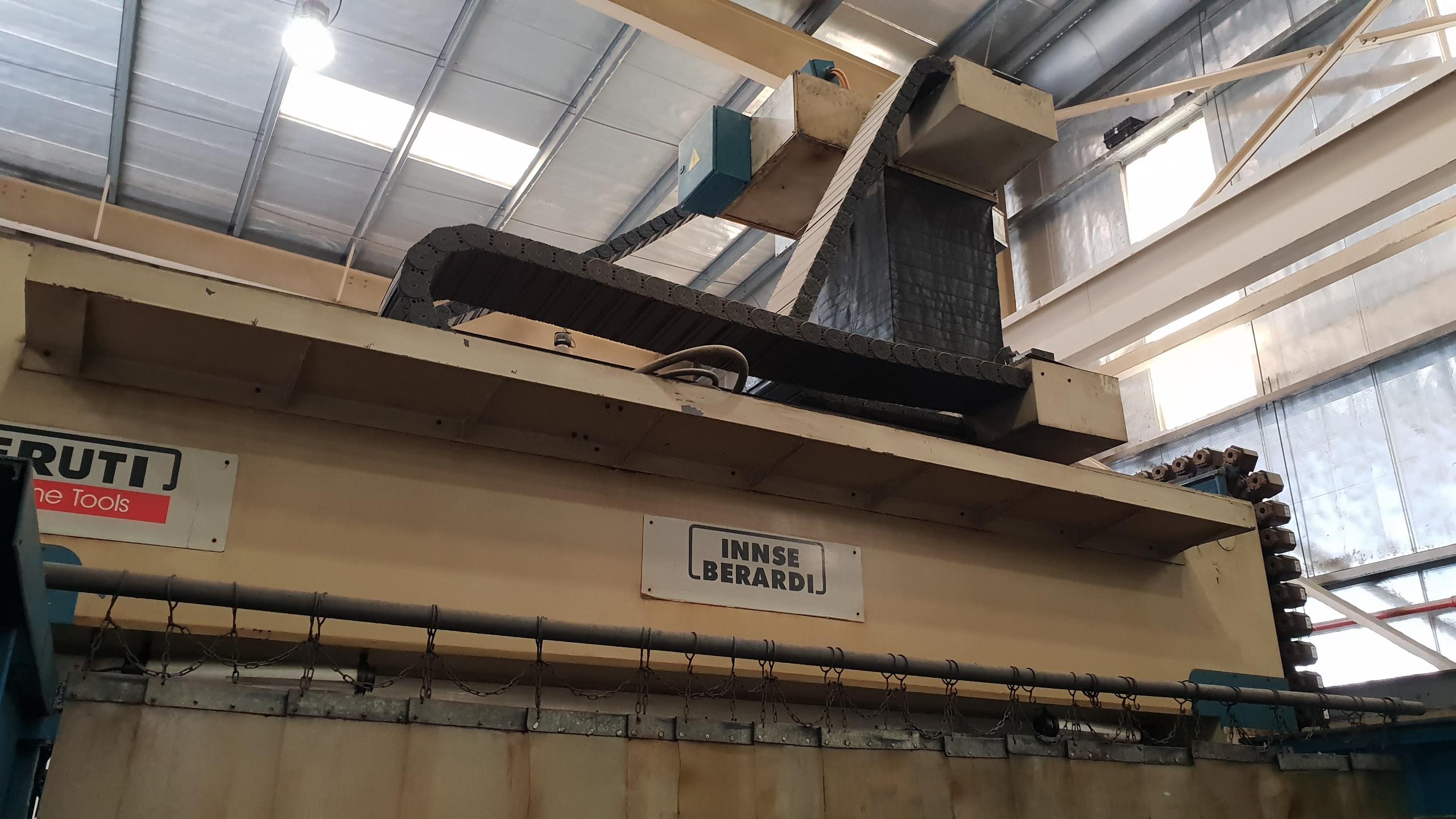

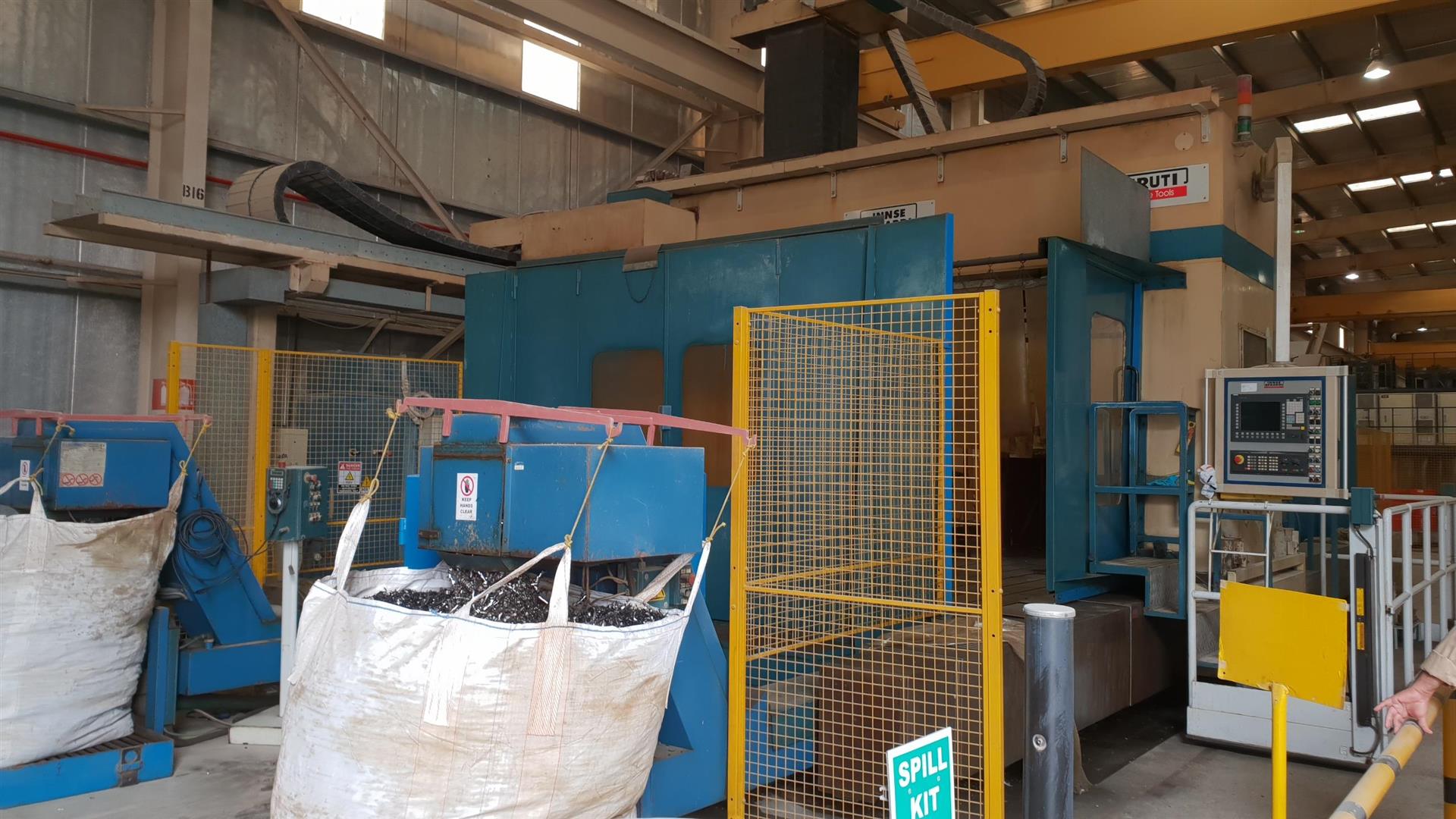

CNC Gantry Machining Ceruti 33 14 m
- Table size 14000x3000 mm
- X-travel - Longitudinal 12000 mm
- y-travel – Cross Travel - 3300 mm
- Z-travel (Spindle headstock) - 1250 mm
- Distance between column - 4000 mm
- Max Dis. between spindle - Table - 1750 mm
- Min Dis. between spindle - Table - 500 mm
- Machining Feed/rapid - Up to 20 000 mm/min
- Spindle speed - Up to 9750 rpm
- Tool change unit - 60 ATC
- Tool taper - SK50
- Spindle motor power - 35 kW
- Spindle turning moment - Max. 250 Nm
- Angular Milling head - SK50
- Machine total weight - 100 tonnes

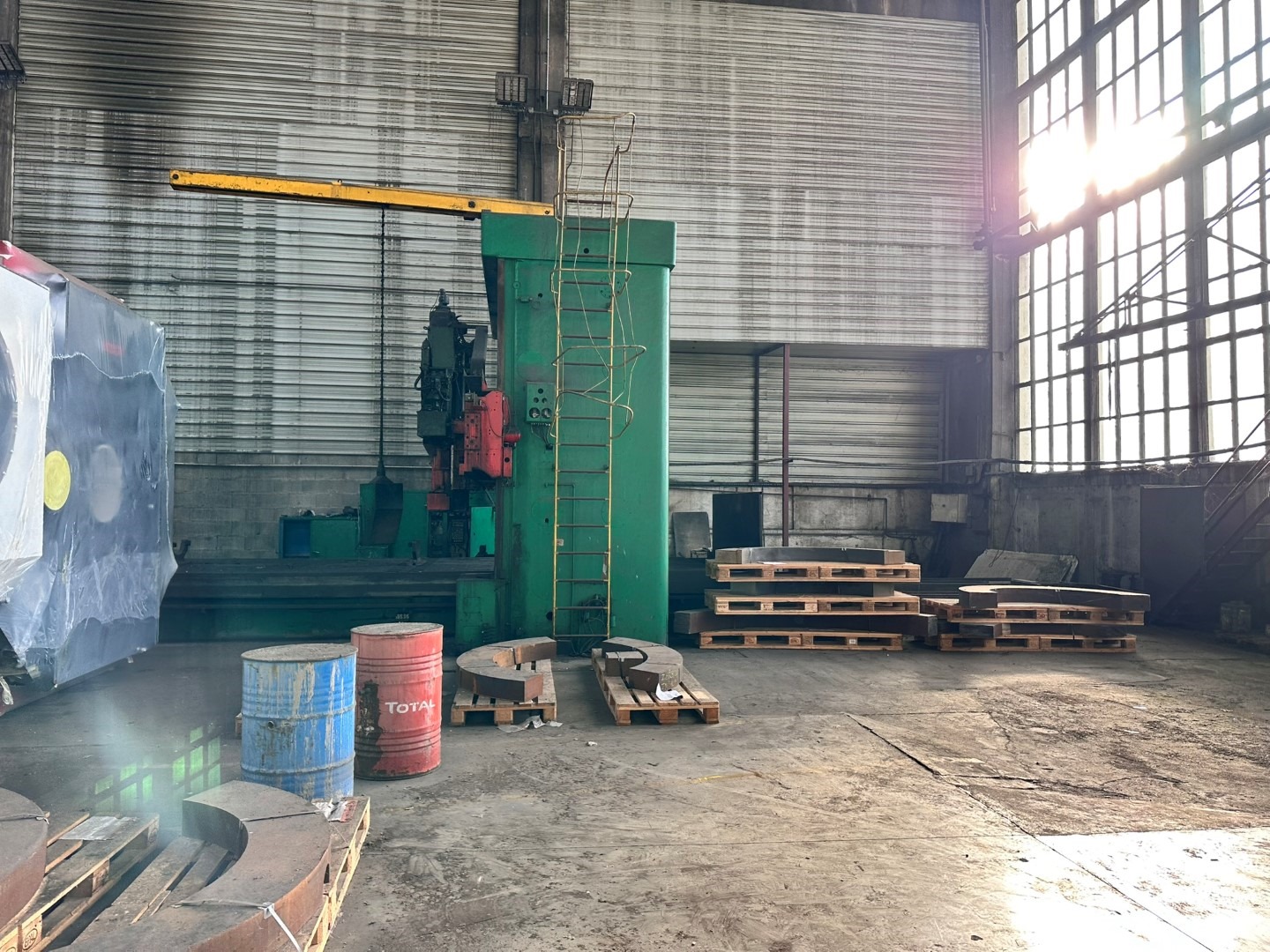

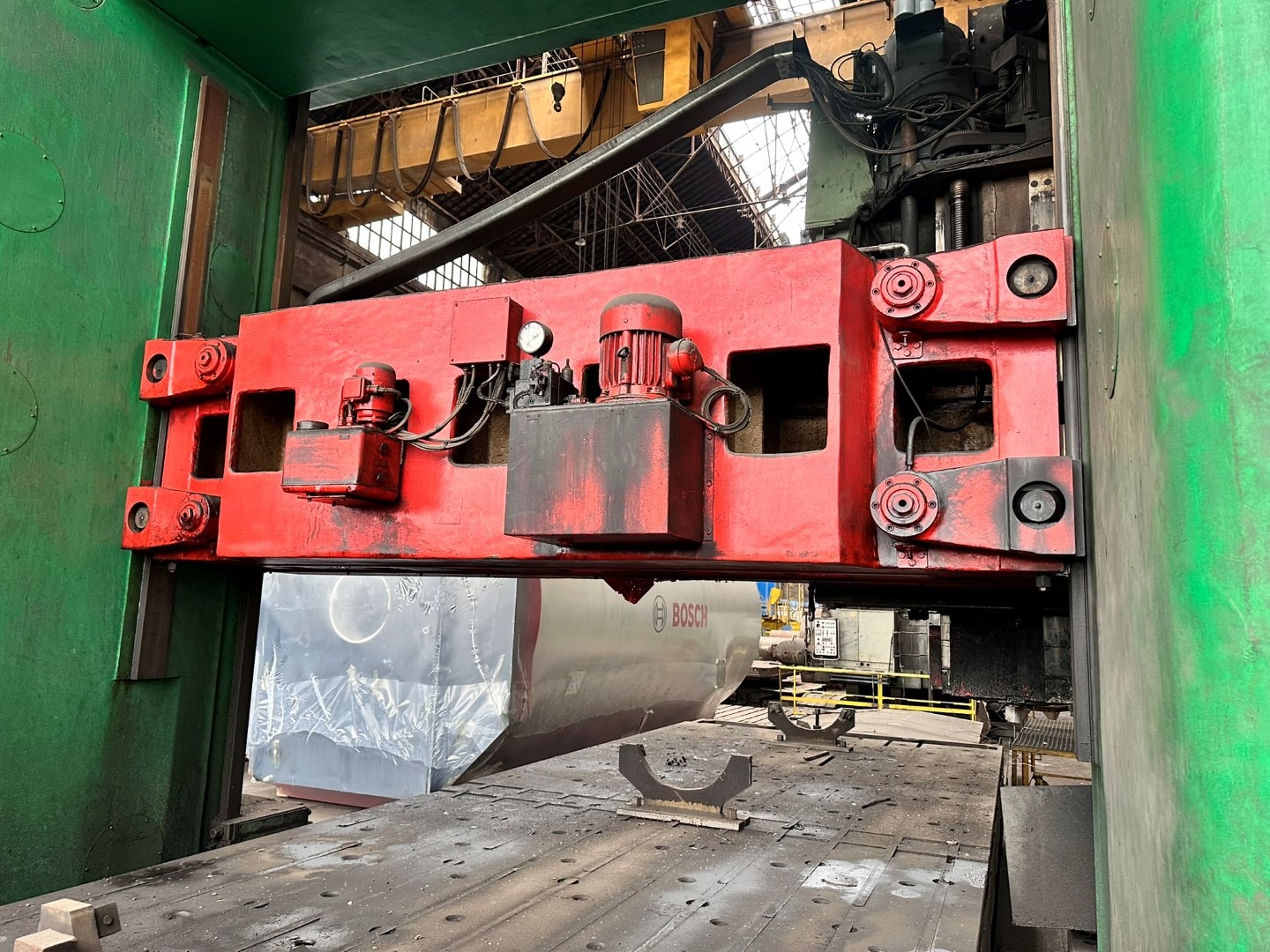

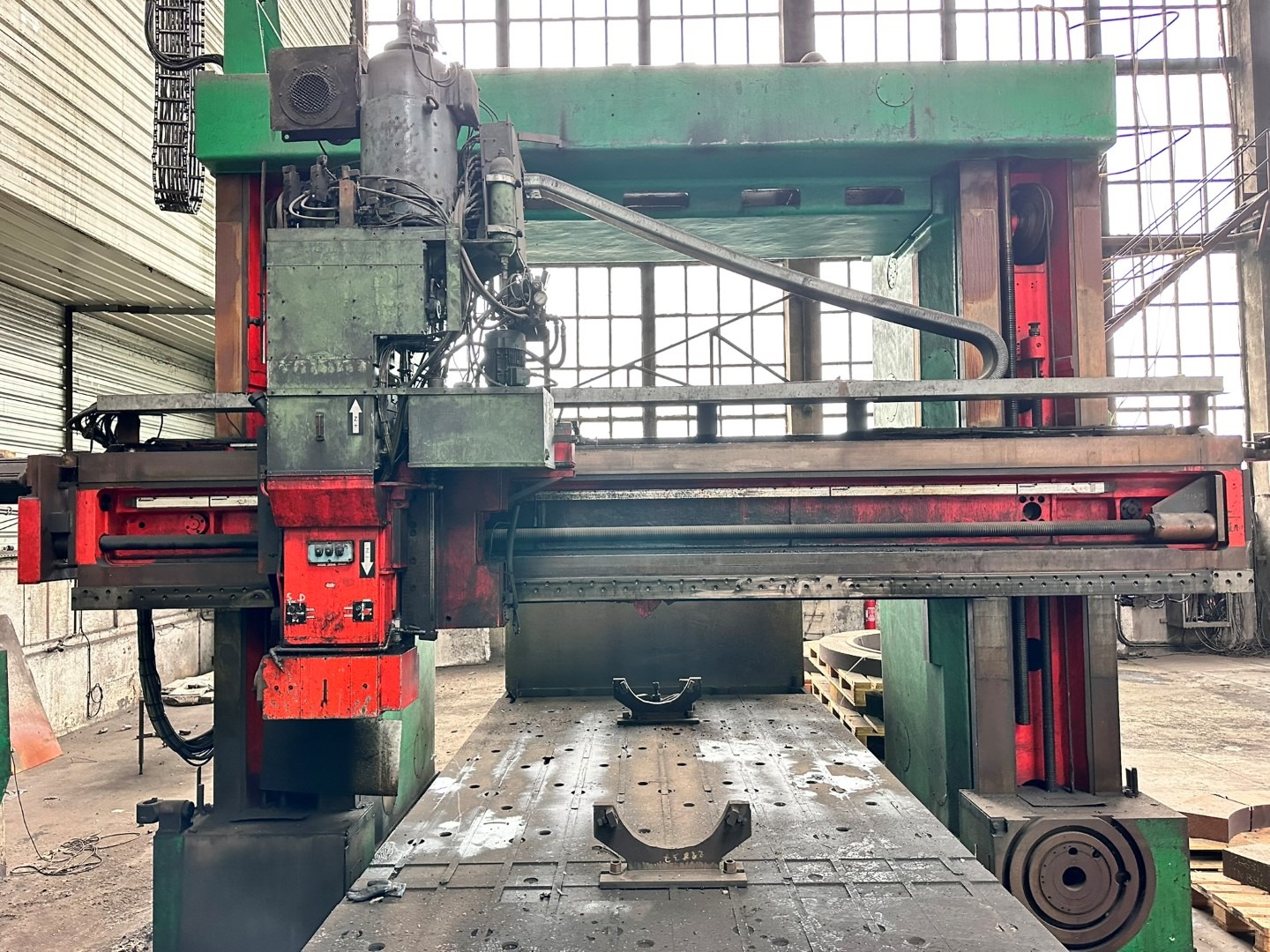

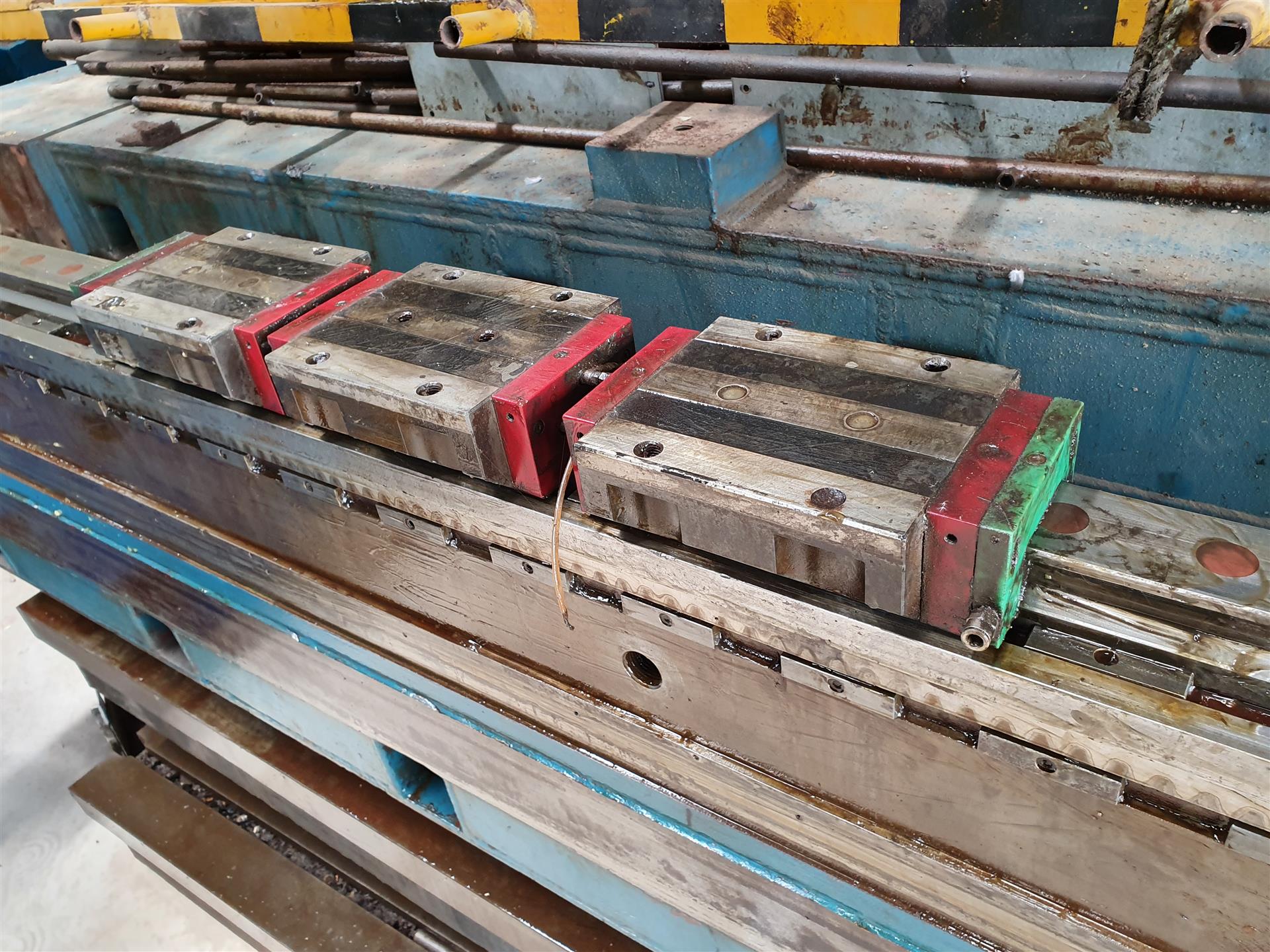

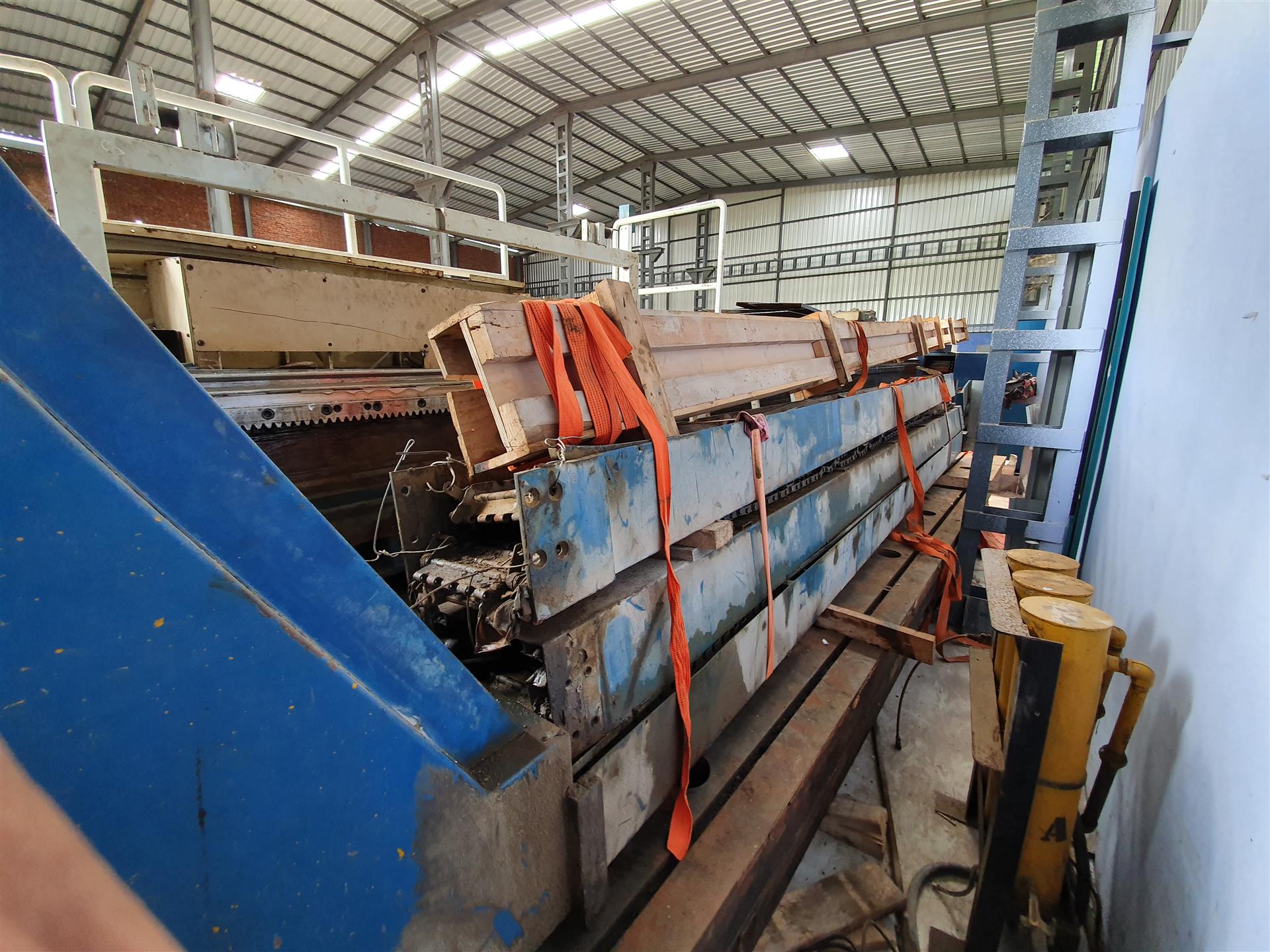

Used CNC Plano Milling Machine 8000 x 3200 mm
- Travel X (Table travel)- 8000 mm
- Travel Y (Cross)- 4000 mm
- Travel Z (Head)- 500 mm
- Travel W (Cross slide Vertical travel)- 6000 x 2100 mm
- Between column- 3200 mm
- Table size- 8000 x 2800 mm
- Max. workpiece height- 2500 mm
- Machine weight Estimated- 100 - 120 Tonnes

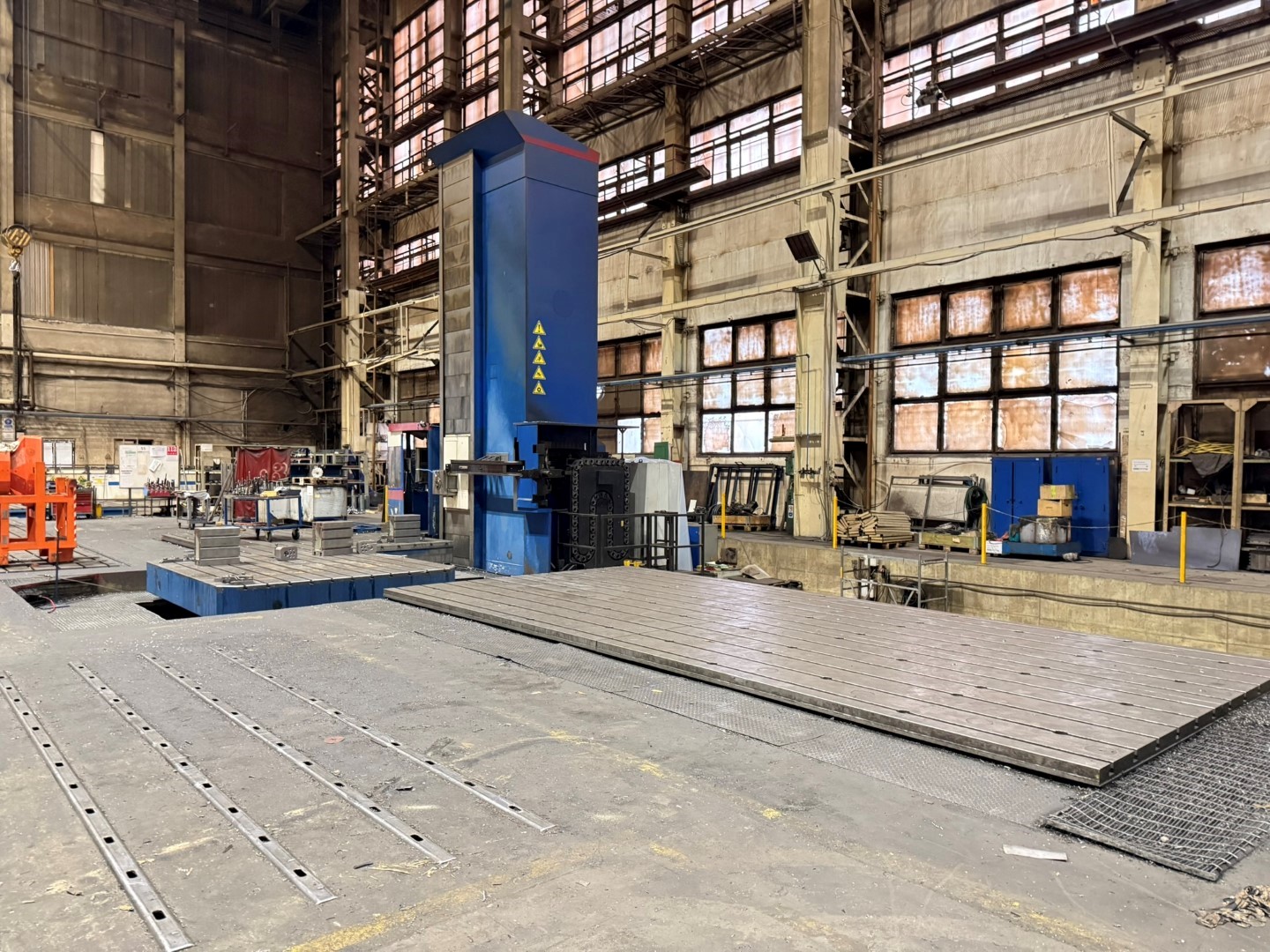

CNC Gantry Milling Forest Line
- Travel X 6000 mm
- Travel Y 2500 mm
- Travel Z 950 mm
- Travel 6000 x 2100 mm
- Table 6000 x 2100 mm
- Distance between columns 2400 mm
- Max. height under Toolpost 1200 mm
- Auto head 2.5°
- Spindle 3200 rpm
- Rapid 10 m/min
- Machine weight approx. 35 Tonnes
