Milling (Bed & Column type)

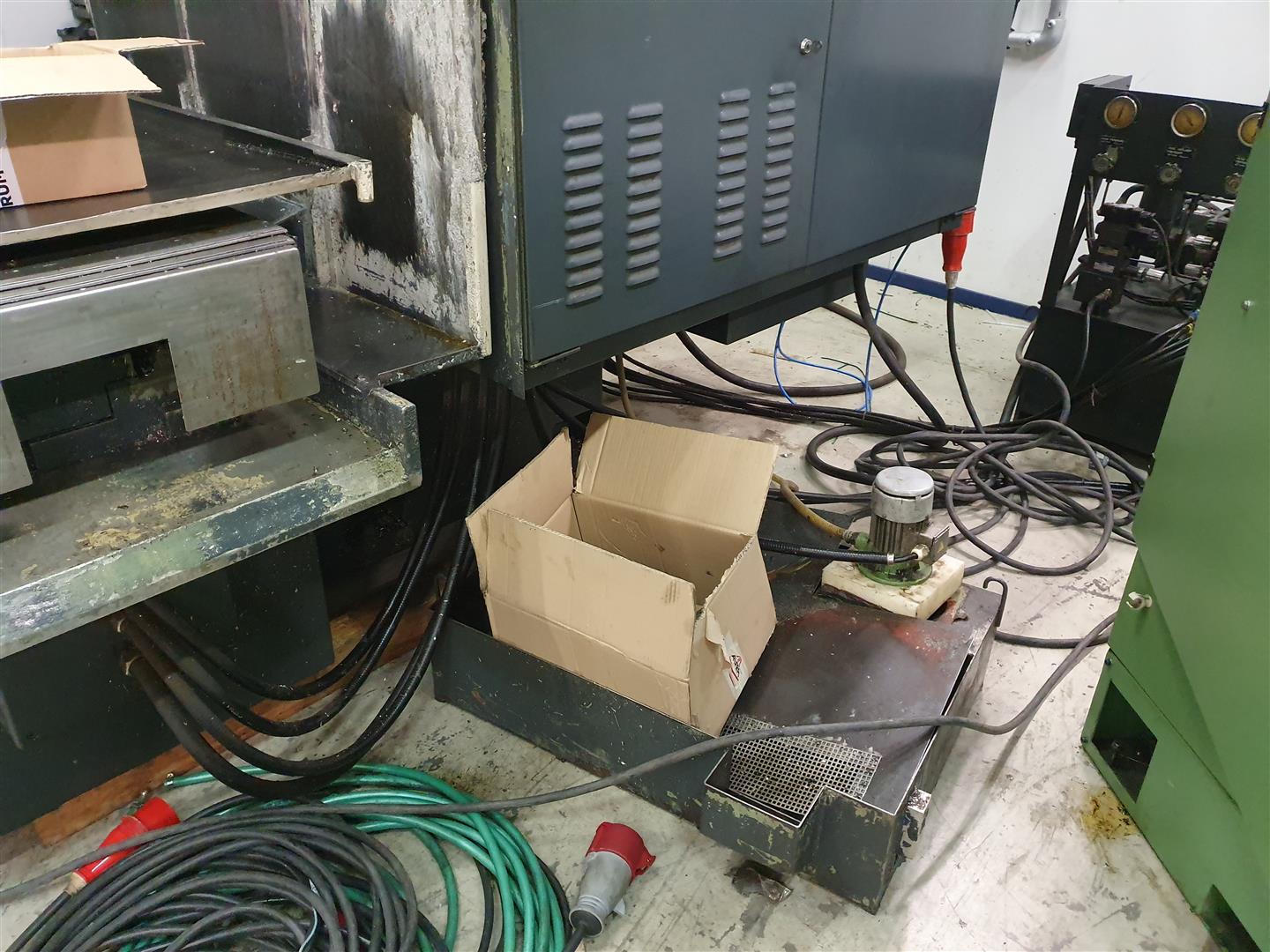

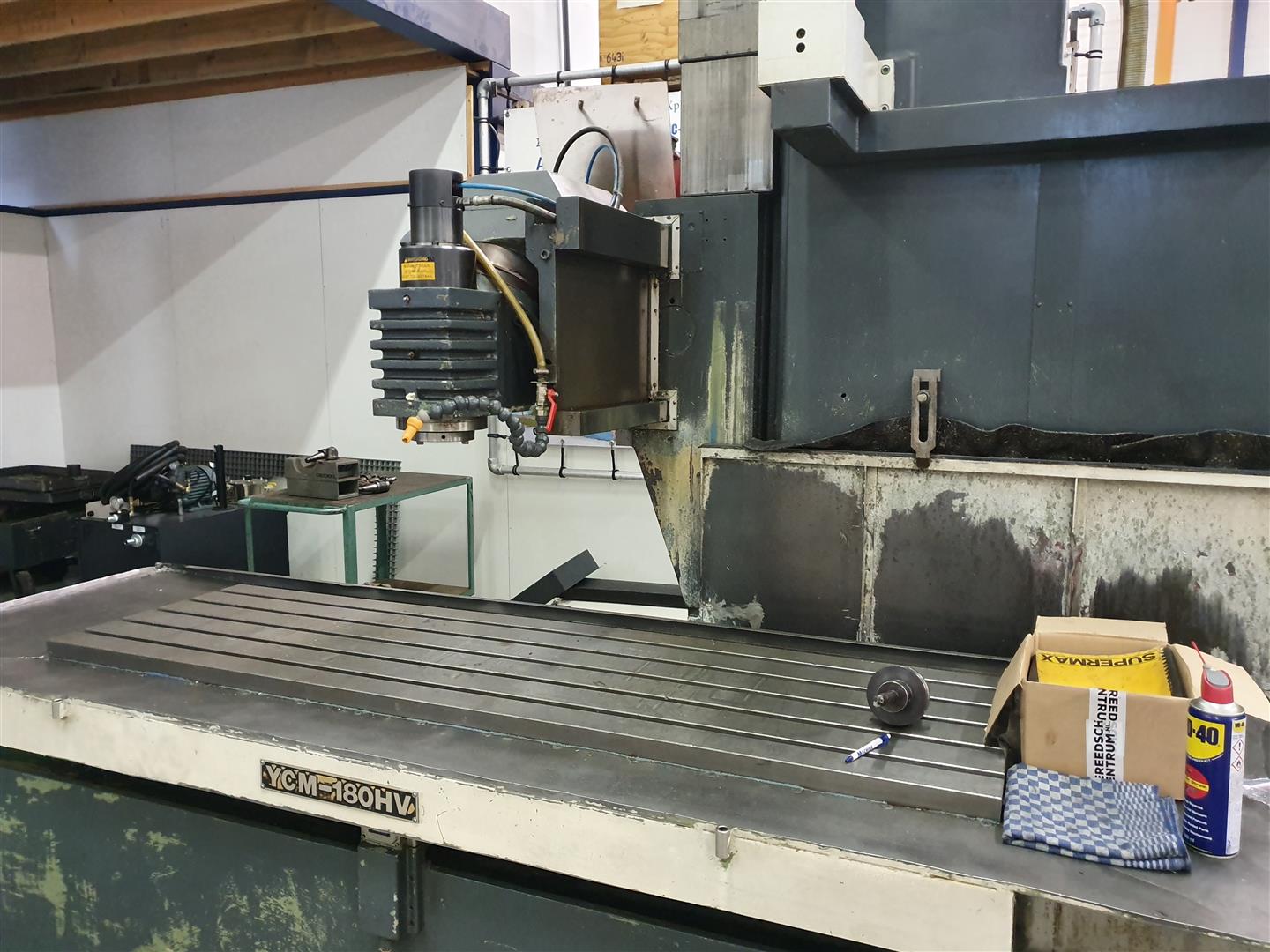

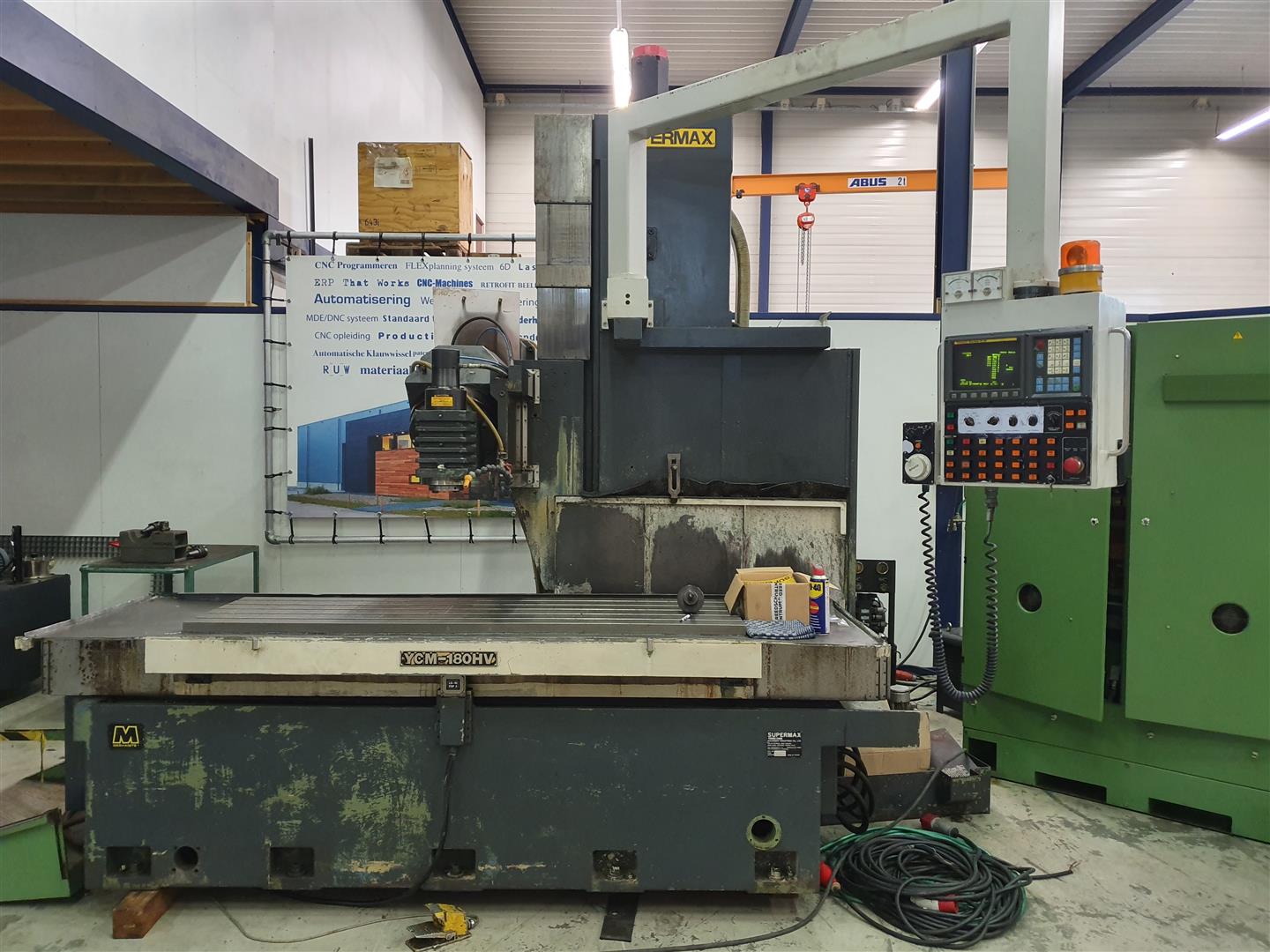

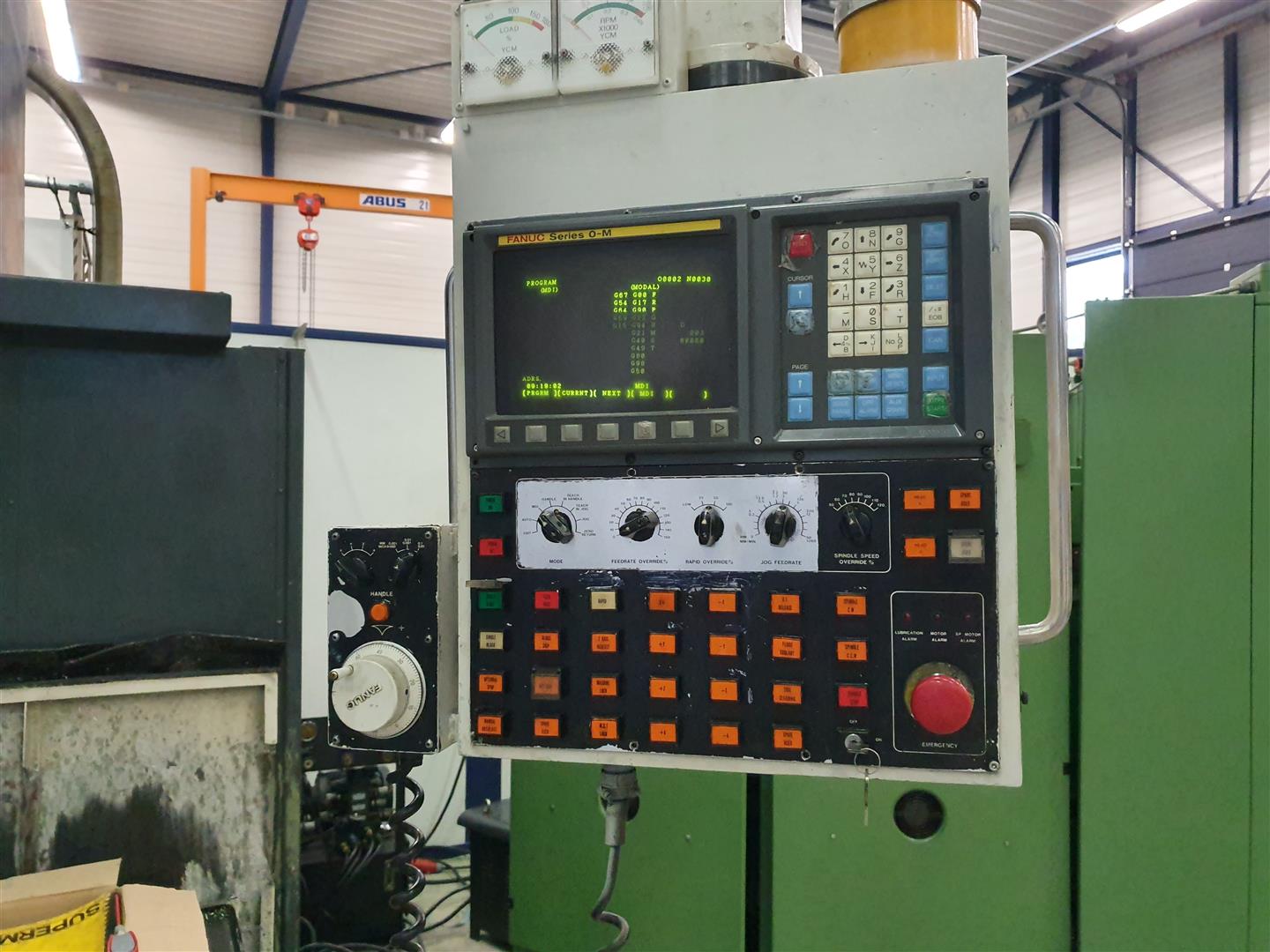

CNC Bed Milling YCM Supermax 1800 HV
- Travel X 1800 mm
- Travel Y 740 mm (Ram)
- Travel Z 900 mm (vertical)
- Table Size 2000 x 600 mm
- Spindle nose to table surface 100 - 1000 mm
- Spindle center to column surface 105 - 845 mm
- TMax. Table load cap. 2000 Kg
- Rapid Feed X/Y: 9m/min, Z: 6 m/min
- Cutting Feed 2.5 m/min
- Spindle Motor 15 KW

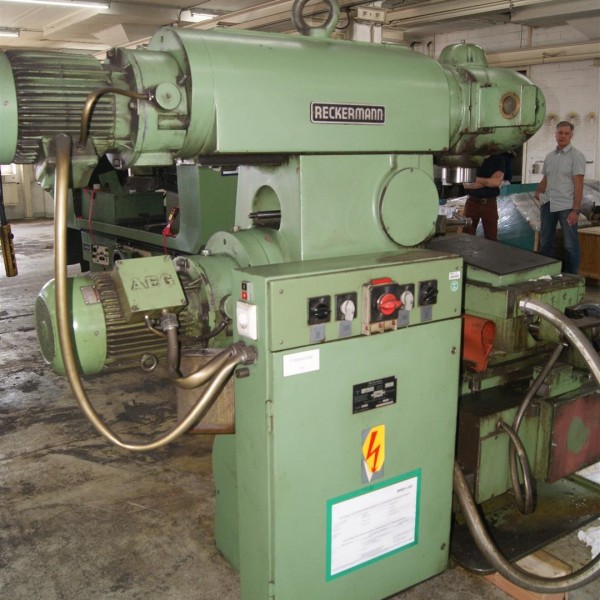

Universal Milling Machine Reckermann Uni 1000 M138
- x-travel- 1000 mm
- y-travel- 400 mm
- z-travel- 500 mm
- table surface area- 1300 x 400 mm
- tool taper- ISO 50
- feed- 15 – 600 mm/min
- spindle turning speed range- 32 – 1500 rpm
- total power requirement- 9,6 Hp
- weight of the machine ca.- 3000 kg

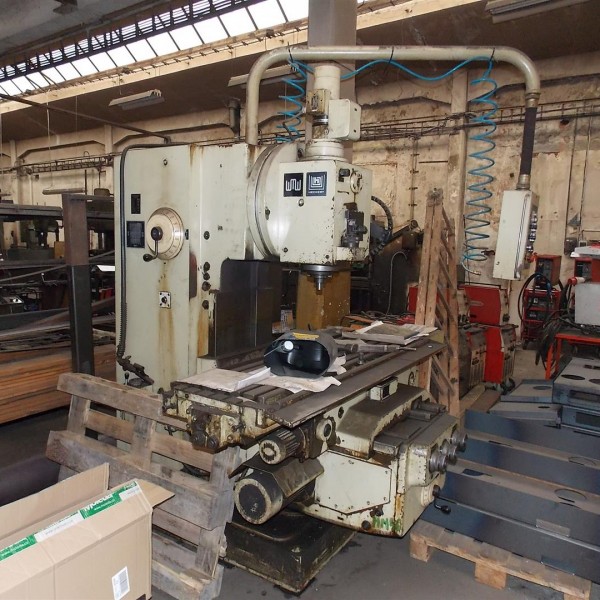

Vertical Milling Machine WMW FSS 400 E M135
- Table size 400 x 1600 mm
- Longitudinal stroke (X) 1120 mm
- Cross stroke (Y) 345 mm
- Vertical stroke (Z) 400 mm
- Spindle ISO 50
- Table indexing 45 degree each side
- Milling spindle power 11 kW
- Machine weight 4 tone

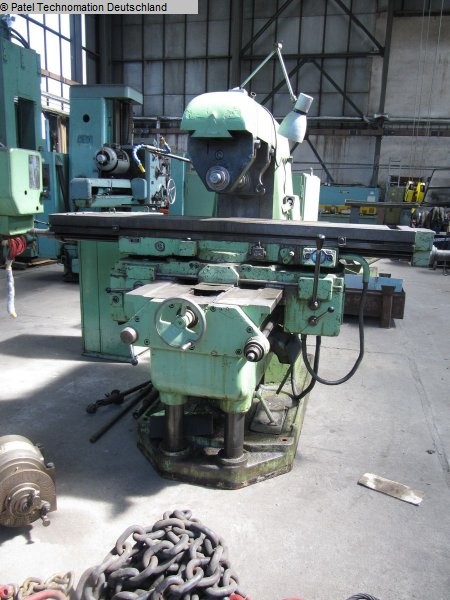

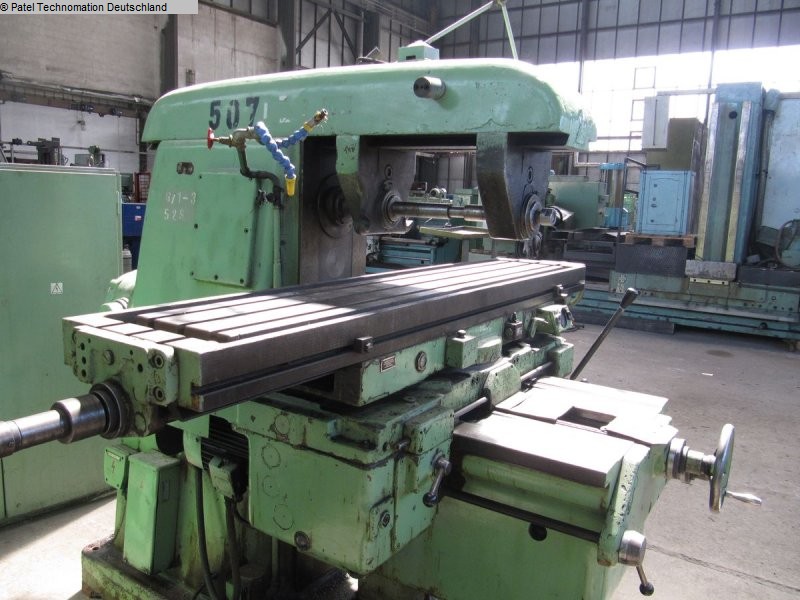

Universal Milling Machine TOS FA 5 BH 1133-M136
- table longitudinal travel 1400 mm
- table cross travel 450 mm
- vertical movement 450 mm
- table-size 2000 x 450 mm
- revolutions per minute 18 – 1400 U/min
- tool adaptor ISO 50
- distance table / middle of spindle 115 – 575 mm
- feeds 10 – 1250 mm/min
- feed range – vertical 2,5 – 315 mm/min
- rapid traverse longitudinal and cross 3,2 m/min
- rapid traverse: vertical 800 mm/min
- weight of the machine ca. 5,1 t
- dimensions of the machine ca. 3 x 2,4 x 2 m
Vertical Milling Machine TOS FA5V
- Table size 2000 x 425 mm
- Longitudinal stroke (X) 1400 mm
- Cross stroke (Y) 450 mm
- Vertical stroke (Z) 440 mm
- Table size 2000 x 425 mm
- Machine weight 5170 kg
DMG DMU 200 P
- Travel X 1800 mm (cross)
- Travel Y 2000 mm (longitudinal)
- Travel Z 1100 mm (vertical)
- C-axis 360° - 0.001°
- B-axis 0-180°
- Rapid Feeds 60 / 40 / 40 m/min
- Spindle power 44 KW
- Spindle speed up to 10.000 rpm
- Spindle torque 187/288 NM
- Spindle taper SK 50
- ATC 60 positions
- Table 1700 x 1400 mm
- Table load cap 5000 Kg
